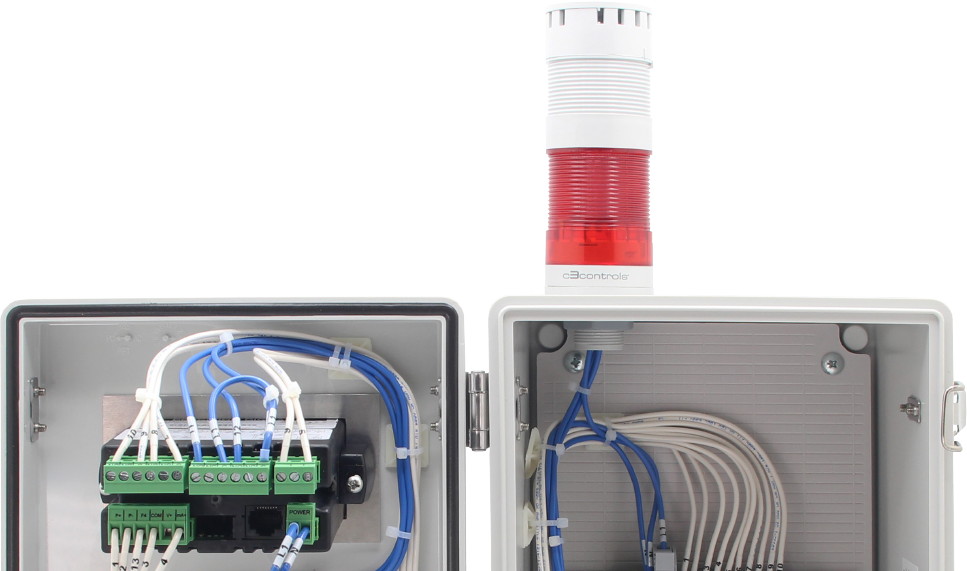

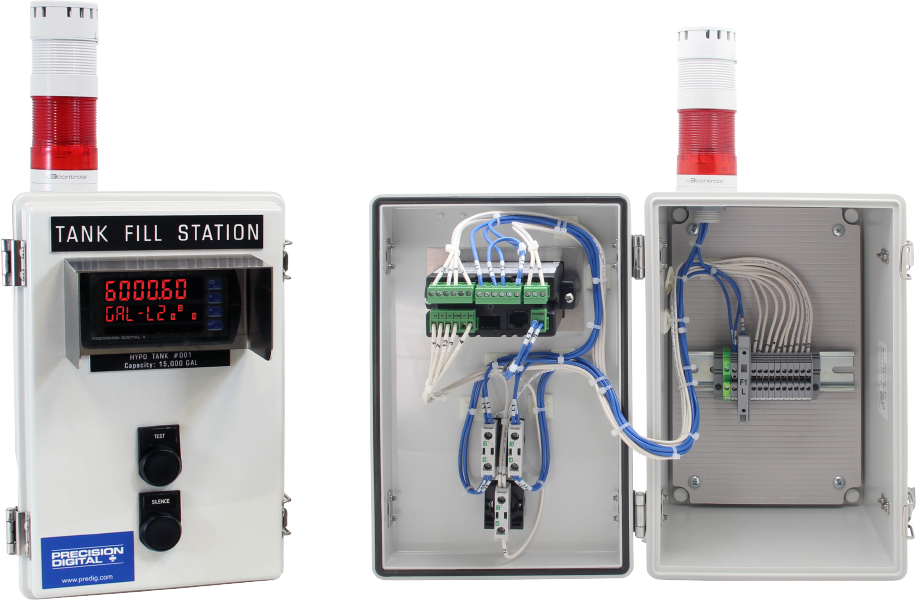

Process Value Alarm Enclosure Assembly
PDEA-PVA
Model
PDEA-P1PVA6-PL-000000-0-R
Product Type
Process Value Alarm Enclosure Assembly with all Components Installed and Pre-Wired
Power
120 VAC
Operating Temperature Range
-25 to 60°C (-13 to 140°F)
Enclosure Material
Plastic
Number of Panel Meters
1
Digital Panel Meter Model
PD765-7X5-00
Number of Annunciators
0
Annunciator Model
None
Number of Towers
0
Light Mode
None
Green Light
0
Yellow Light
0
Red Light
0

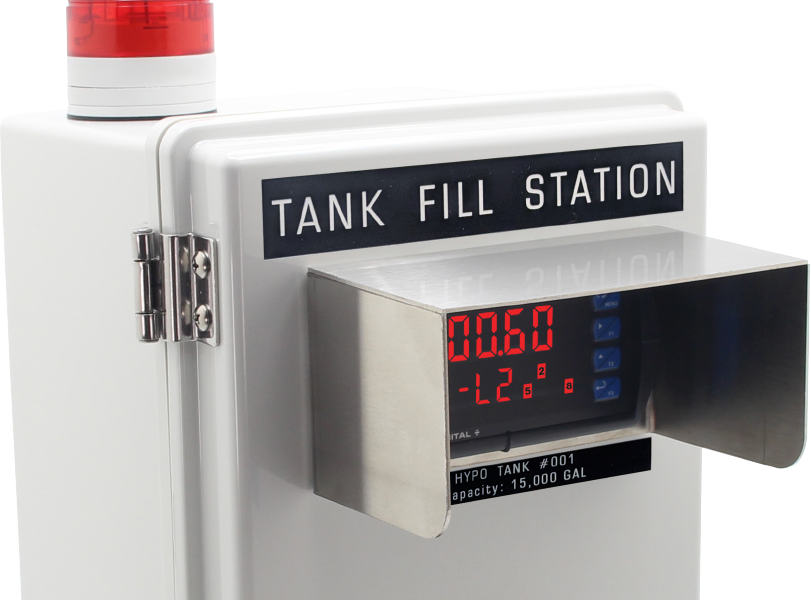

Sun Hood
0
85-100db Horn
0
Test Button

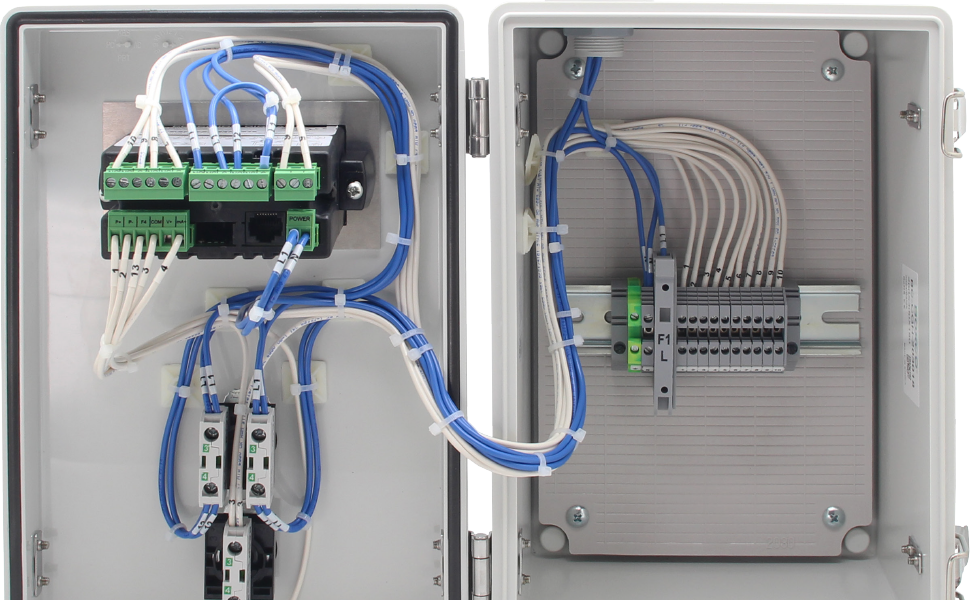

DIN Rail Mount
Weight
11.9 lbs (5.4 kg)
Documentation Included
Connections Table, Installation Instructions
Approvals
UL/C-UL 508A Listed Panel Shop E542864
All Sales Final
Enclosure assemblies are non-cancelable and non-refundable.
Warranty
1 Year
$1850.00
