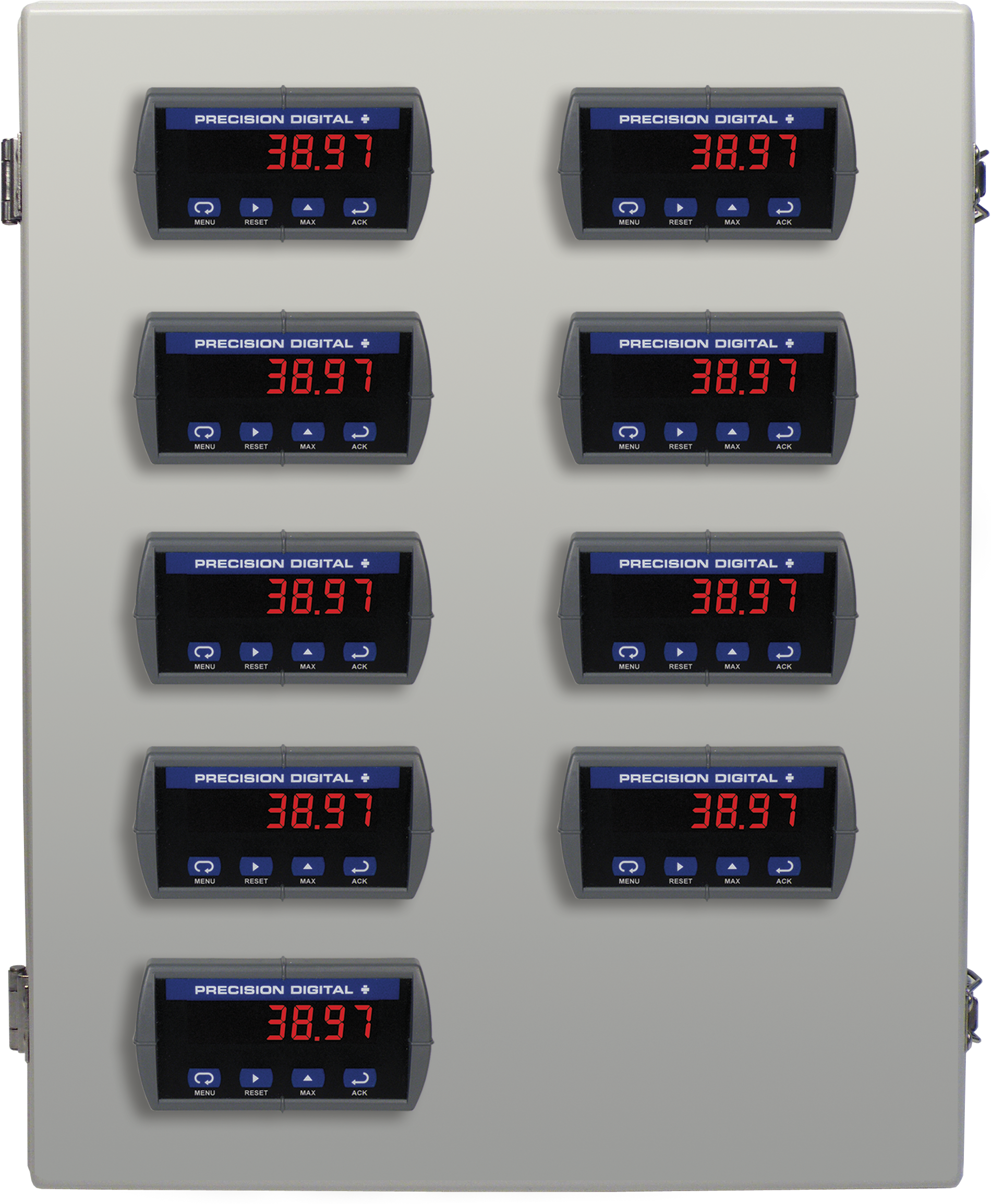

Plastic UL Type 4X Enclosure with (9) Horizontal 1/8 DIN Cutouts
Left
Model
PDA2309
Product Type
Plastic UL Type 4X Enclosure with (9) Horizontal 1/8 DIN Cutouts
Material
Thermoplastic Polyester
Meter Mounting
Through Cover
Conduit Hole Location
None
Sub-Panel Model Number
PDP2310
Applicable Meter Types
C (Trident Style Horizontal 1/8 DIN Panel Meter), E (ProVu Style Horizontal 1/8 DIN Panel Meter)
Cutouts
(9) Horizontal 1/8 DIN Cutouts
Cover Securing Method
Hinge / Latch
Fits PDA1024-01
Yes
Sun Hood Compatible
Yes
Light/Horn Compatible
Yes

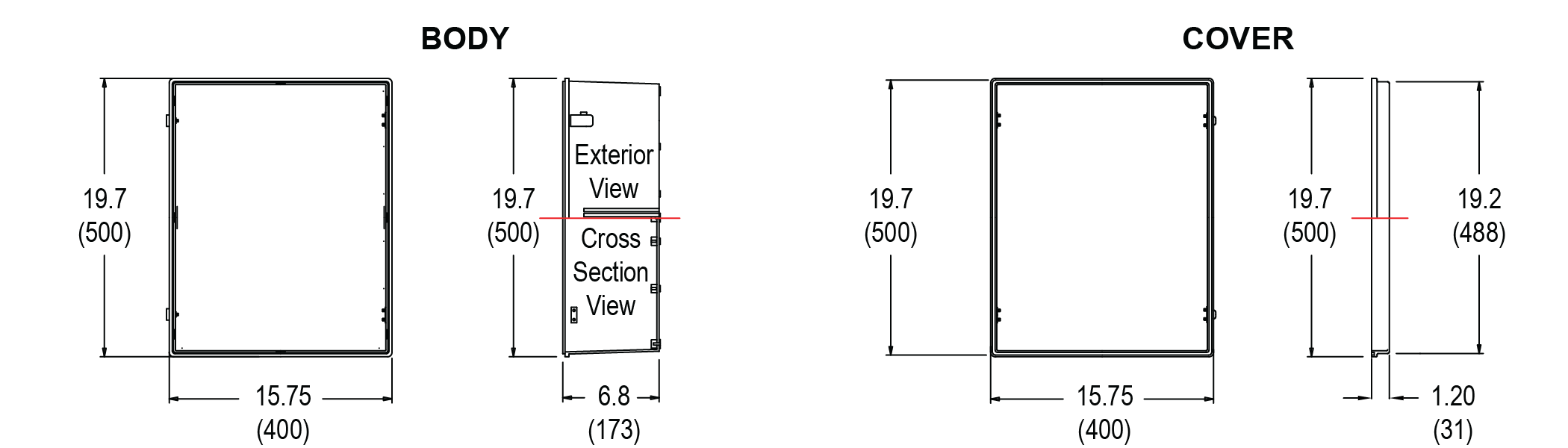

Overall Dimensions
15.8" x 19.7" x 7.9" (400 mm x 500 mm x 200 mm) (W x H x D)
Weight
8.7 lbs (4.0 kg)
Approvals
C-UL, UL
Warranty
1 Year
$343.00
Inches (mm)
