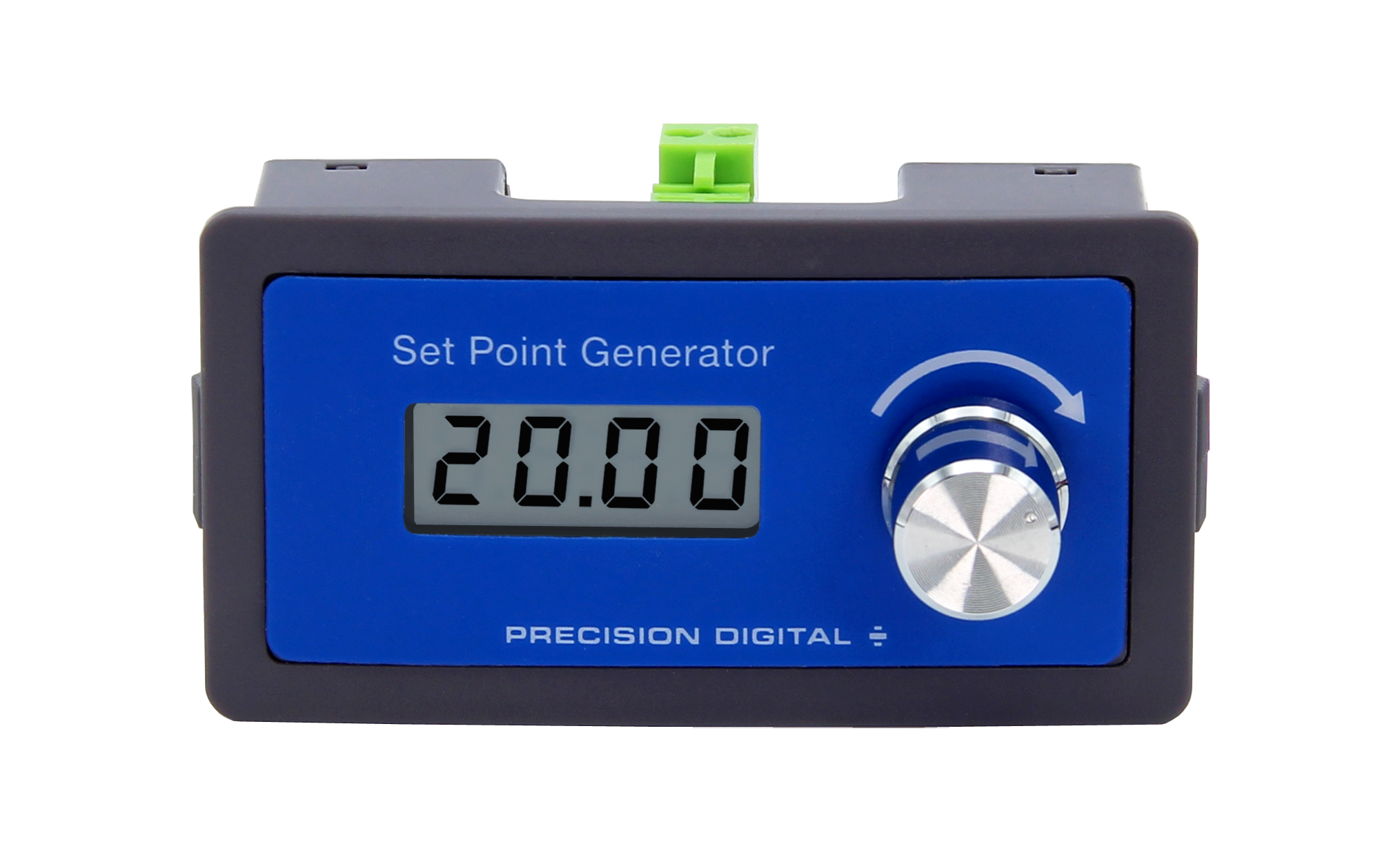

4-20 mA Set Point Generators
PD420
Model
PD420
Product Type
4-20 mA Set Point Generator; Panel Mount
Display
Backlit LCD, 7 Segments, 4 Digits (0 to 2999), 0.30" (7.6 mm) High
Power
15-30 VDC
Output(s)
(1) 4-20 mA, 3-21 mA
Operating Temperature Range
0 to 50°C (32 to 122°F)
Front Panel
NEMA 1
DIN Size
Non-Standard
Enclosure Material
Plastic

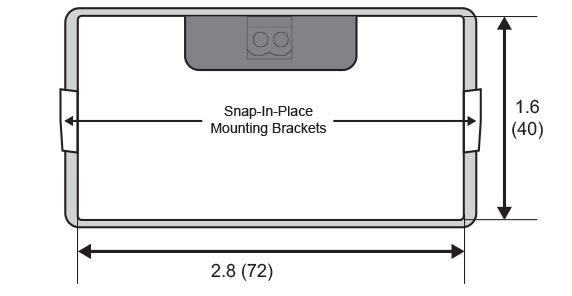

Panel Cutout Dimensions
2.9" x 1.6" (73 mm x 40 mm) (W x H)
Overall Dimensions
3.1" x 1.7" x 1.8" (79 mm x 43 mm x 46 mm) (W x H x D)
Weight
2 oz (57 g)
Approvals
None
Warranty
1 Year
$180.00

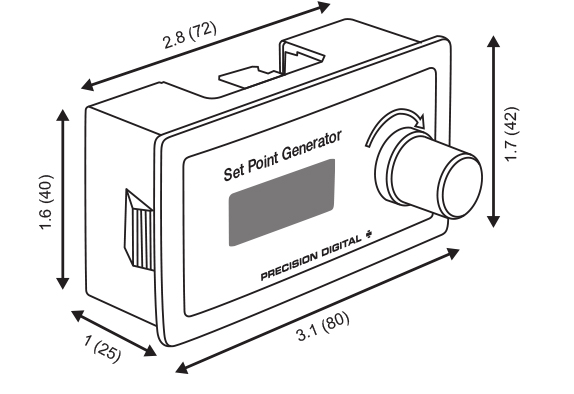

Inches (mm)
