- 4-20 mA Loop Set Point Generator
- Panel Mount or NEMA 4X
- 4-20 mA or 3-21 mA Output Ranges
- Set Point Displayed as 0-100%, 4-20 mA, or 3-21 mA
- Built-in Dial for Changing Output
- Backlit Display
- Coarse or Fine Set Point Adjustment
- Ā± 0.5% Output Accuracy
- 0.01 Display Accuracy
- 15-30 VDC Power Requirement
- < 500 ohms Sampling Resistance
- Decals Provided for %, mA, Open, Closed, and Custom
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!
Questions? (508) 655-7300
4-20 mA Set Point Generators
Set Point Generators
Models in stock
from $180.00

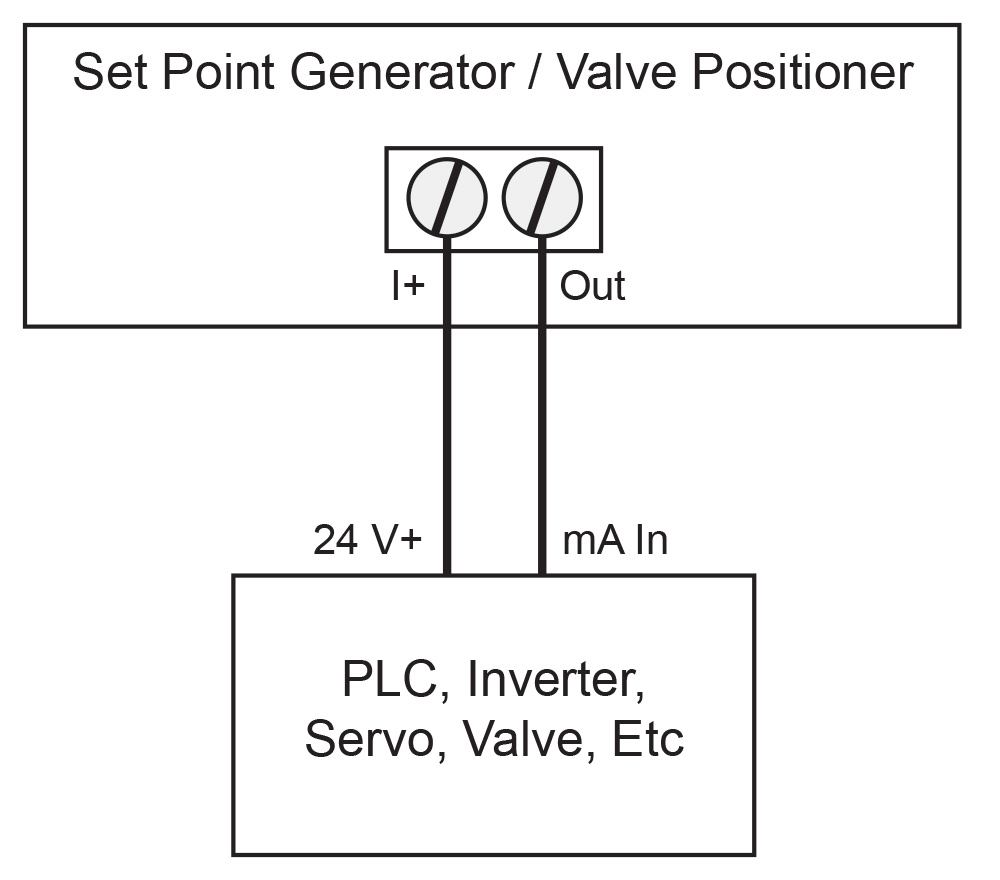

The PD420/21 set point generators provide a convenient way to generate a 4-20 mA signal that can be used to control another device.
Both feature a backlit LCD. They can be programmed to display 0-100%, 4-20 mA or 3-21 mA and output either 4-20 mA or 3-21 mA. A built-in dial is provided to vary the displayed / output value. The dial may be programmed for coarse or fine adjustment.

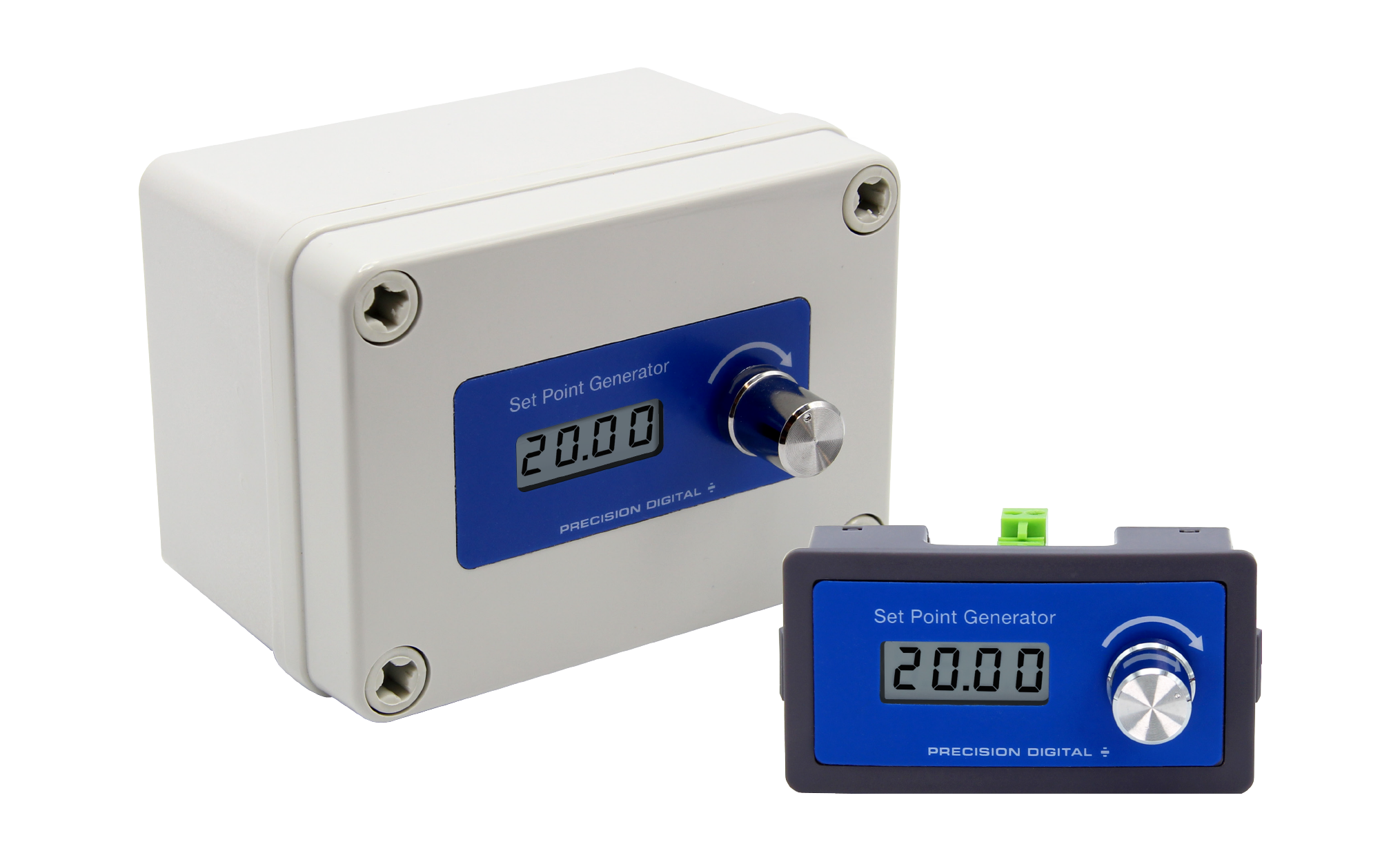

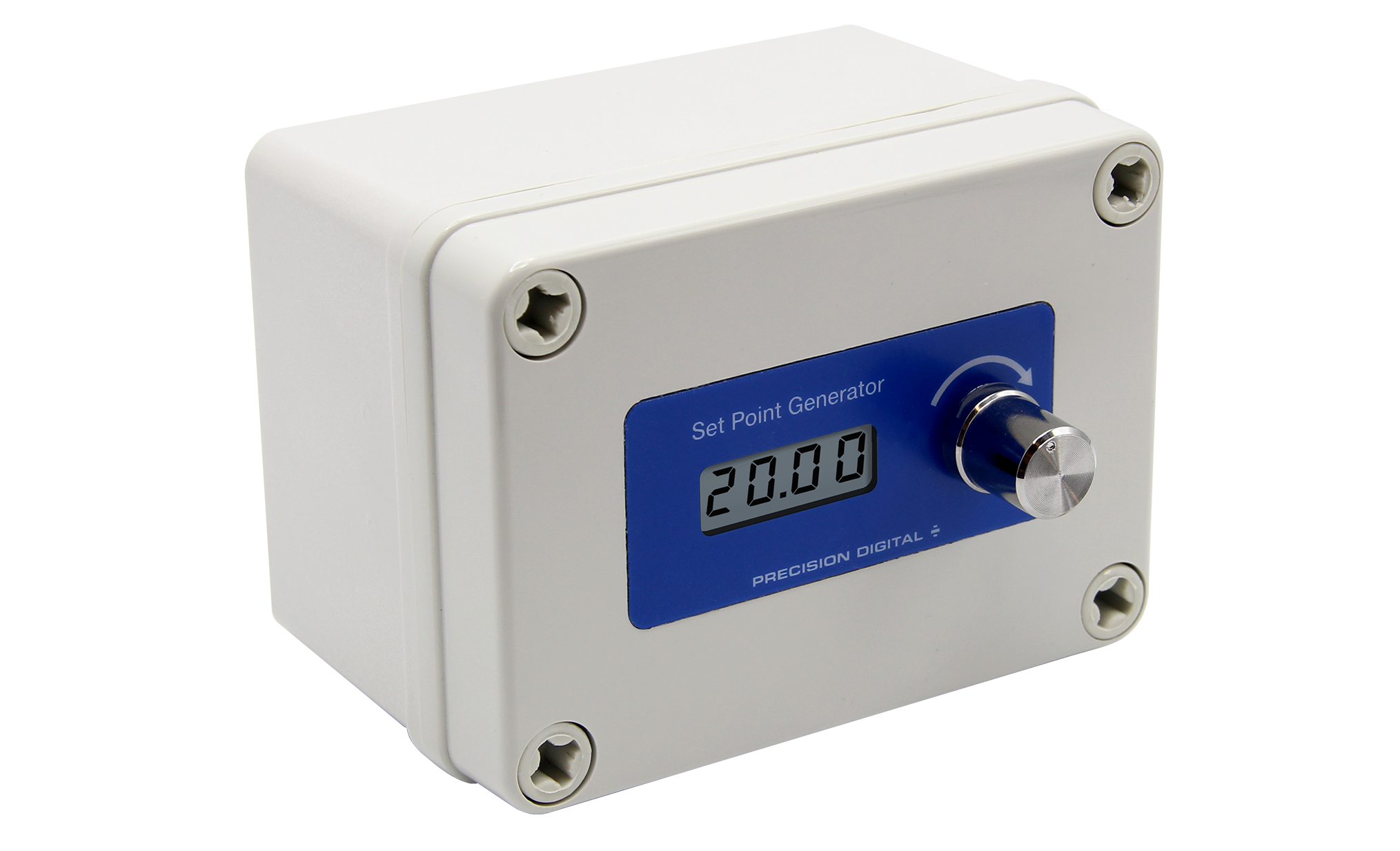

The signal generators are available as a panel mount or NEMA 4X version. In addition, NEMA 4X enclosures are provided to house up to three of the panel mount versions.
Decals are provided for %, mA, Open, and Closed for the user to apply to the faceplate. There is also a decal with a white background for the user to write a custom label.
Why Should You Buy:
- Generate 4-20 mA signals
- Programmable % or mA display
- Dial signal adjustment
- Panel or NEMA 4X models
