- 1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
- 0-20, 4-20 mA, 0-5, 1-5, 0-10, ±10 V Inputs
- 4-Digit Display, 0.56" (14.2 mm)
- Shallow Depth Case Extends Only 3.6" (91 mm) Behind Panel
- Isolated 24 VDC @ 200 mA Transmitter Power Supply Option
- No Assembly Required
- Operating Temperature Range: 0 to 65°C (32 to 150°F)
- UL & C-UL Listed. E160849; 508 Industrial Control Equipment
- Input Power Options: 85-265 VAC or 12-36 VDC
- Max/Min Display
- Easy Front Panel Programming; No Jumpers, Switches or Solder Pads
- 1-Year Warranty
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!
Questions? (508) 655-7300
- Accessories
- Annunciators & Scanners
- Calibrators, Signal Isolators, Splitters, & Generators
- Control Stations
- Custom Enclosure Assembly
- Demo Units
- Digital Panel Meters
- Enclosures
- Explosion-Proof
- Field-Mount Indicators
- Industrial Wireless
- Intrinsically Safe
- Large Display
- Light/Horn
- Loop-Powered Meters
- Modbus Displays
- Modifications
- Multi-Channel Controllers
- Process Value Alarm Enclosure Assembly
- Sun Hoods
- Subpanel Wiring Assembly
- Temperature Controllers
- Level
- Level (Feet & Inches)
- Process
- Pressure
- Temperature
- Flow Rate/Totalizer
- Pump Control
- Chemical Bulk Storage
- Strain Gauge
- Load Cell
- Hazardous Area
- Industrial Wireless
- Batch Control
- PID Control
- Modbus
- Annunciator
- Calibration
- Data Logging
- Signal Conditioning
- Signal Generation
- Signal Isolating
- Signal Splitting
- High Current
- Speed
- Weight

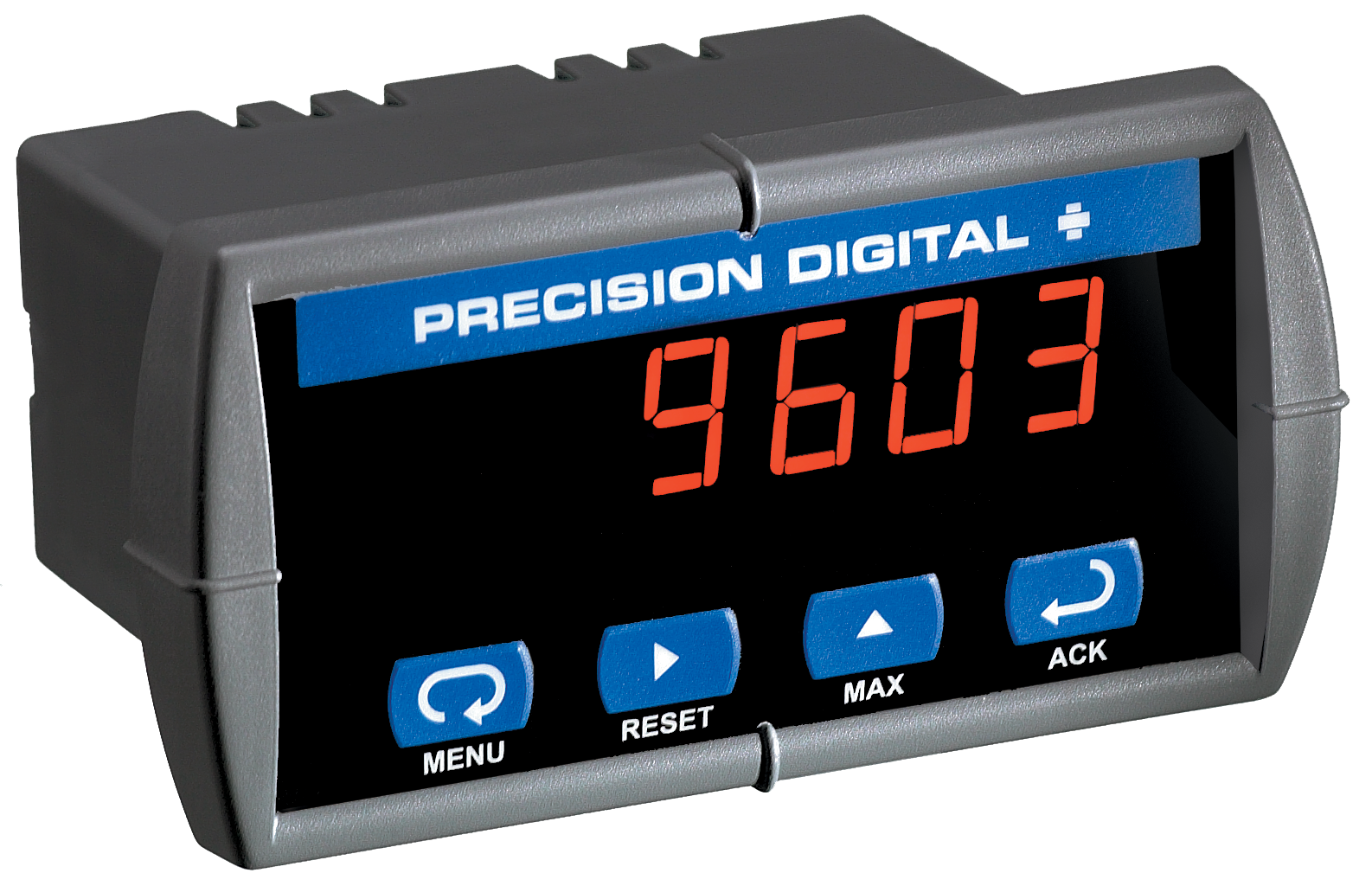

Sabre P Low-Cost Process Digital Panel Meter
PD603
Models in stock
from $208.00
The Sabre P PD603 process meter combines operational simplicity with high end features to deliver the perfect low-cost 1/8 DIN digital panel meter for display only applications. The PD603’s menu structure is easy to navigate because the only selections are for input, decimal point location, and scaling values; there are no other menu choices to add confusion during the setup process. Despite being a low-cost meter, the PD603 is still packed with many features typically found only on more expensive meters, such as a NEMA 4X front, universal power supply, front panel programming, input current overload protection, UL listing, and CE marking.
Why Should You Buy:
- Low Cost Display Only Option
- NEMA 4X/IP65 Front
- Analog Input
The Sabre P model PD603 is an easy to use 1/8 DIN digital panel meter that has all the important features customers want in a process input meter. These features include field selectable 0-20 mA, 4-20 mA, 0-5, 1-5, or ±10 V inputs, NEMA 4X front panel, UL and C-UL Listing for 508 Industrial Control Equipment, and optional 24 VDC power supply for the transmitter. The meter is easily programmed and scaled with its four front panel buttons and simple menu structure.
Inches (mm)
× ![Enlarged View]()
Documentation & Resources
No software found for this product.
PDA2322
Plastic UL Type 4X Enclosure with (1) Vertical and (1) Horizontal 1/8 DIN Cutouts
PDA2604-1C
Stainless Steel UL Type 4X Enclosure with (1) Centered Horizontal 1/8 DIN Cutout
PDA2604-2C
Stainless Steel UL Type 4X Enclosure with (2) Centered Horizontal 1/8 DIN Cutouts
PDA2604-3C
Stainless Steel UL Type 4X Enclosure with (3) Centered Horizontal 1/8 DIN Cutouts
PDA2622
Stainless Steel UL Type 4X Enclosure with (1) Vertical and (1) Horizontal 1/8 DIN Cutouts
PDA2821
Plastic UL Type 4X Enclosure with (1) Vertical and (1) Horizontal 1/8 DIN Cutouts
PDA3414
Plastic UL Type 4X Enclosure with (1) Vertical and (1) Horizontal 1/8 DIN Cutouts
