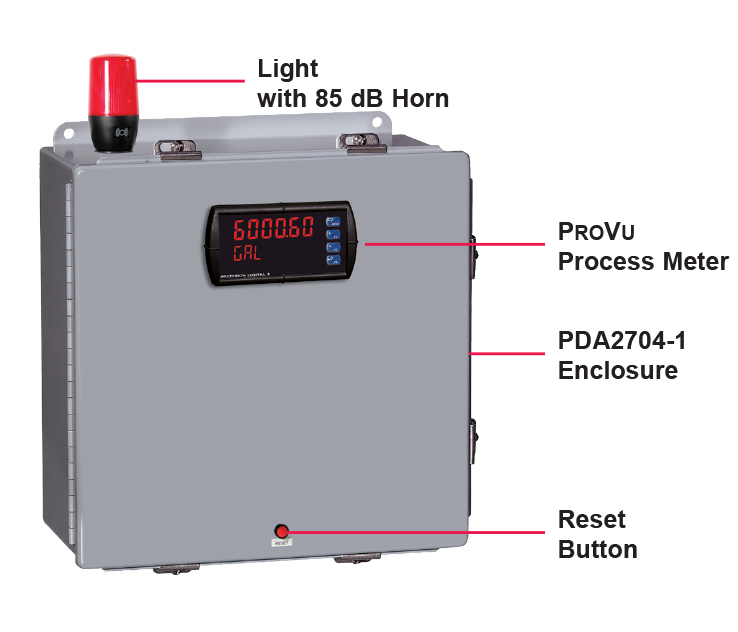

Steel UL Type 4 Enclosure with (1) Centered Horizontal 1/8 DIN Cutout
Model
PDA2704-1C
Product Type
Steel UL Type 4 Enclosure with (1) Centered Horizontal 1/8 DIN Cutout
Material
Painted Steel
Meter Mounting
Through Cover
Conduit Hole Location
None

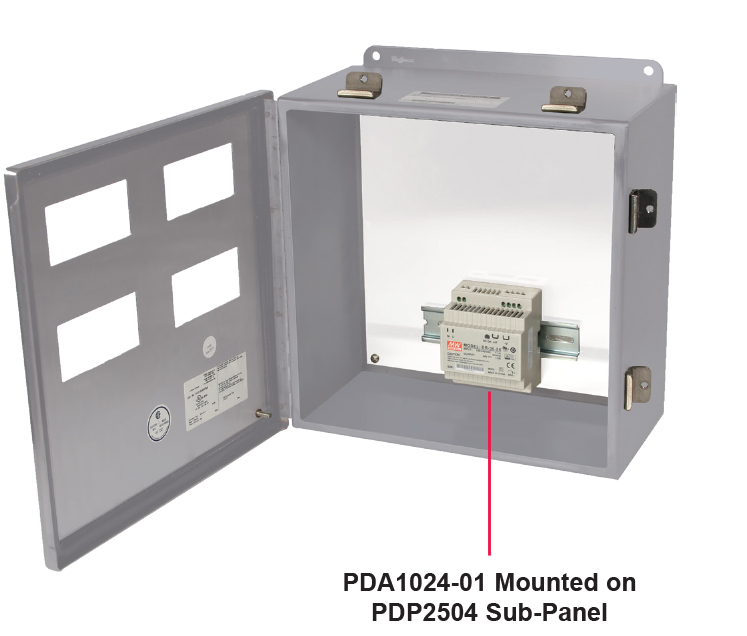

Sub-Panel Model Number
PDP2504
Applicable Meter Types
C (Trident Style Horizontal 1/8 DIN Panel Meter), B (PD542/PD543/PD562), E (ProVu Style Horizontal 1/8 DIN Panel Meter)
Cutouts
(1) Centered Horizontal 1/8 DIN Cutout
Cover Securing Method
Hinge / Latch
Fits PDA1024-01
Yes
Sun Hood Compatible
Yes
Light/Horn Compatible
Yes
Overall Dimensions
12.9" x 13.5" x 6.0" (329 mm x 343 mm x 152 mm) (W x H x D)
Weight
14.1 lbs (6.4 kg)
Approvals
UL, CSA
Warranty
1 Year
$815.00
Inches (mm)
