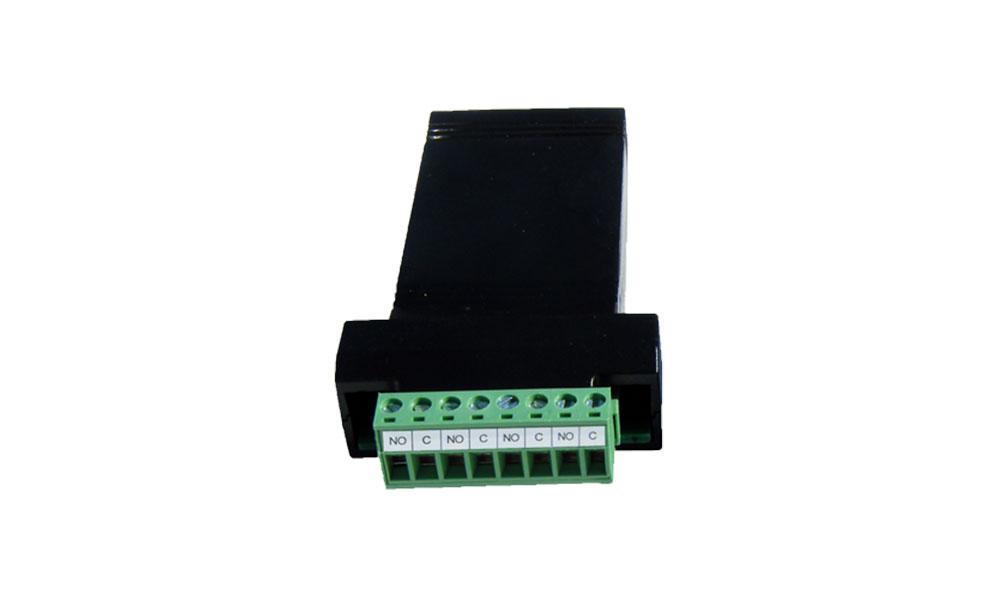

The PDA1004 four relay external expansion module adds four 3 amp Form A (SPST) relays to any ProVu meter. It can be configured for functions similar to the ProVu onboard relays and can be added at any time.
Relays: Four Form A (SPST); Rated 3 A @ 30 VDC and125/250 VAC for resistive loads 1/14 HP @ 125/250 VAC for inductive loads
Cable: Standard CAT5e cable; provided with module. Note: to ensure optimum performance use only supplied cables
Connectors: RJ45; identical and interchangeable. Removable screw terminal blocks that accept 12 to 22 AWG wire
Tightening Torque: Screw terminal connectors: 5 lb-in (0.56 Nm)
Enclosure: ABS-94HB material, UL94HB (Flame-Class Rating)
Overall Dimensions: 2.286” x .924” x 3.624” (W x H x D), 58.06 mm x 23.47 mm x 92.05 mm (W x H x D)
Power: ProVu meter M-LINK connection
Weight: 2.4 oz (68 g)
DIN-Rail Mounting Kit for up to Two Expansion Modules Available, P/N PDA1002
Choose Your Options
Applicable Meter Types for PDC Enclosures
| Type A | Type B | Type C | Type D | Type E | Type F | Type G | Type H |
|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  |  |
| PD690 | PD542 PD543 | PD603 PD644 PD743 PD765 PD6602 PD6603 PD6604 PD6606 PD6607 PD6608 PD6622 PD6624 PD6626 PD6628 | PD138 PD154 PD158 PD520 | PD6000 PD6001 PD6060 PD6080 PD6081 PD6088 PD6089 PD6100 PD6200 PD6210 PD6262 PD6300 PD6310 PD6363 PD6400 PD7000 | PD530 | PD510 | PD420 |
