Alternatives to Omega DP8 Digital Panel Meter

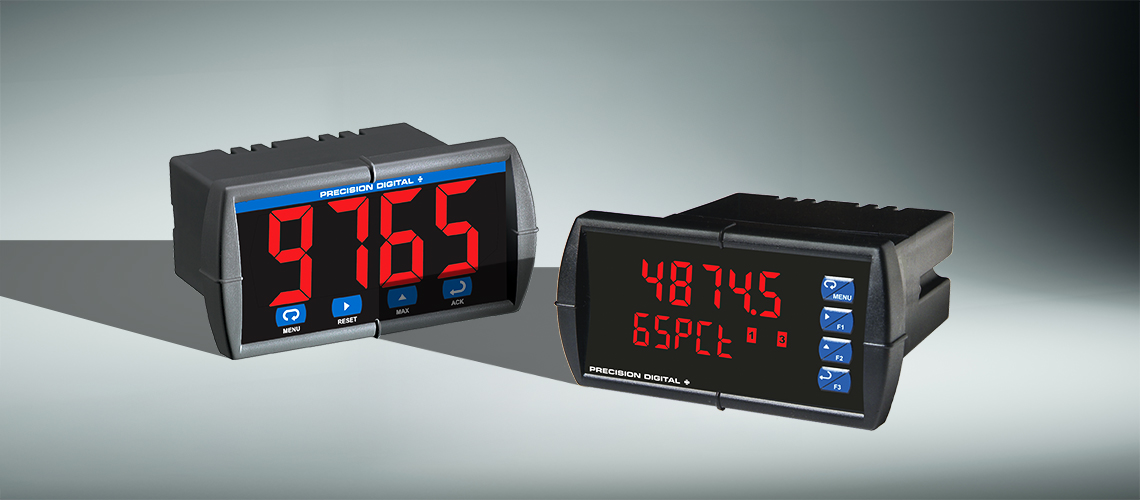

Precision Digital's most popular 1/8 DIN digital panel meters for process and temperature signals with NEMA 4X/IP65 rated front panels.
In stock or 3-day lead time.
Order straight from Precision Digital.
View pricing and purchase online.
Trident Series
Model: PD765
Features
- 4-digit LED display
- 4–20 mA, ±10 V, thermocouple, and RTD inputs
- Up to 2 Form C relays + 4-20 mA output
- 1/8 DIN panel mount with NEMA 4X front
Great for
Process and temperature monitoring where simplicity and availability matter.
ProVu Series
Model: PD6000
Features
- Dual-line, 6-digit LED display
- 4–20 mA and ±10 V inputs
- Up to 4 Form C relays + 4-20 mA output
- 1/8 DIN panel mount with NEMA 4X front
Great for
Applications that require additional indication, outputs, or future configuration flexibility.
Choose the Trident Series PD765 for straightforward applications. Choose the ProVu Series PD6000 if you need additional features or configuration flexibility.
Have questions? Call Us at (866) 549 5694 dial 3 for Sales.
PD765 and PD6000 Comparison
Typical 1/8 DIN panel meters often have a single input and a basic display. Compare how the PD765 and PD6000 models extend functionality.
Core Capability
| | |  | |
| Feature | PD765 | PD6000 | Typical Panel Meter |
| Input Type | Universal Inputs: 4–20 mA, ±10 V, thermocouple, RTD | Analog Inputs: 4–20 mA, ±10 V | Single Input: 4–20 mA |
| Display | 4-digit LED | Dual-line, 6-digit LED | 4-digit LED |
| Digit Height | 0.56" or 1.20" | 0.6" + 0.4" | 0.56" |
| Panel Cutout | 1/8 DIN | 1/8 DIN | 1/8 DIN |
| Front Rating | NEMA 4X/IP65 | NEMA 4X/IP65 | NEMA 1/IP40 to IP50 (or not rated) |
| Transmitter Power Supply | Standard | Standard | N/A |
| Programming | Front Panel or Software | Front Panel or Software | Front Panel |
| Software | Free Via USB | Free PDA80006 USB adapter free upon request | Not Included |
Outputs and Options
| Feature | PD765 | PD6000 | Typical Panel Meter |
| Relay Outputs | (2) Form C | (2) or (4) Form C | (2) Form C |
| Analog Output | (1) 4-20 mA | (1) 4-20 mA | (1) 4-20 mA |
Approvals and Availability
| Feature | PD765 | PD6000 | PAXP |
| Approvals | UL, CE | UL, CE | UL, CE |
| Availability |
In Stock
|
In Stock
|
Varies
|
| Typical Lead Time | 3 days | 3 days | Varies |
Best Fit When...
| PD765 | PD6000 | |
| Straightforward process monitoring | ||
| Straightforward temperature monitoring | ||
| Additional display information needed | ||
| Short lead times are critical | ||
| Future configuration flexibility |
If your application is straightforward, the Trident Series PD765 is often the right starting point. Choose the ProVu Series PD6000 when additional features or configuration flexibility are required.
Have questions? Call Us at (866) 549 5694 dial 3 for Sales.

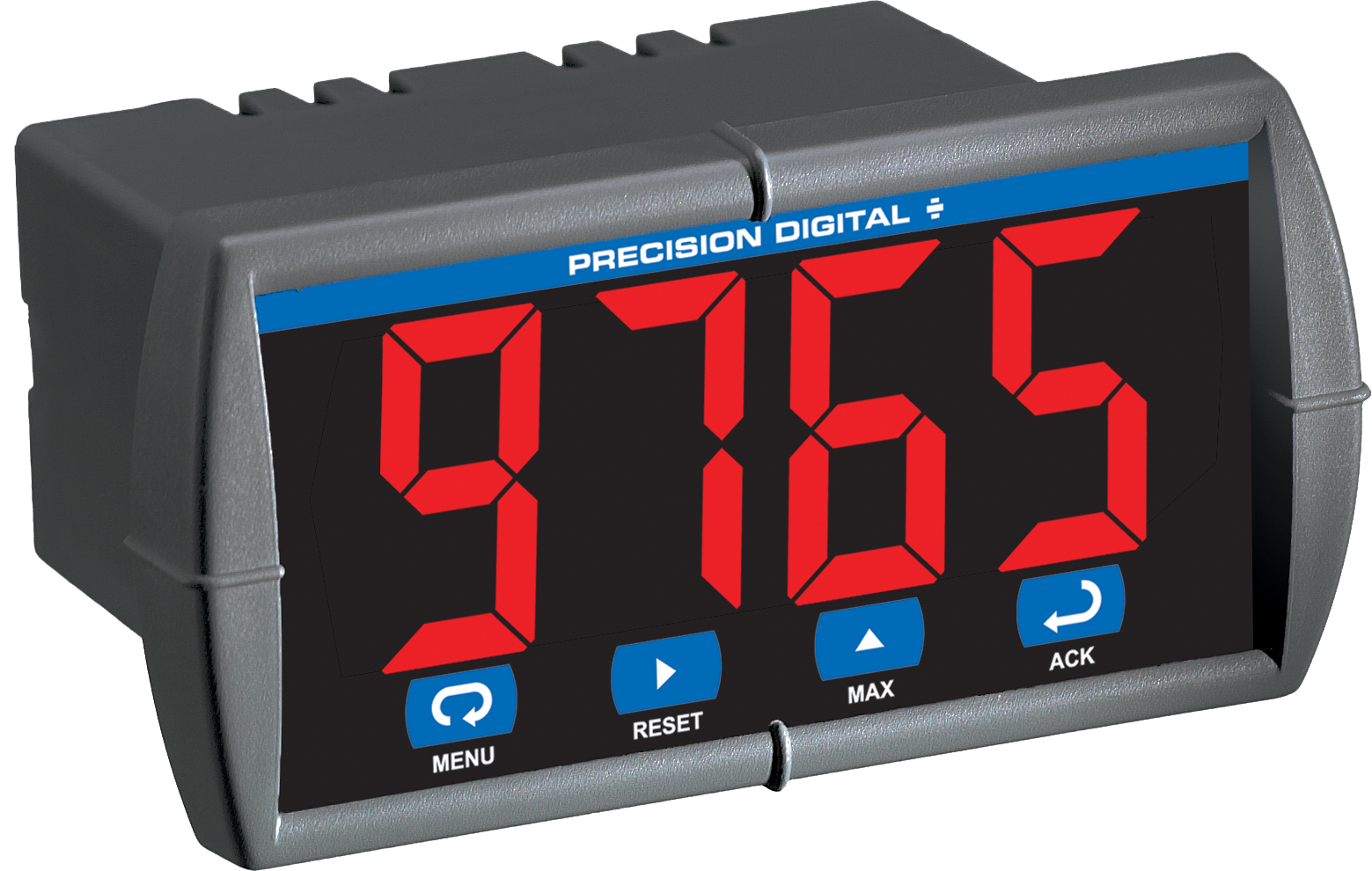

PD765 Trident Series Analog Input Digital Panel Meter
A straightforward digital panel meter for common process input applications.
Overview
The PD765 is a 1/8 DIN digital panel meter designed for standard process input signals such as 4–20 mA and ±10 V. It also accepts temperature inputs such as those from thermocouples and RTDs.
It provides clear digital indication and essential output capability in a simple, easy-to-use device. The PD765 is available in two display sizes to suit different visibility requirements.
Key Features
- Selectable 4–20 mA, ±10 V, thermocouple, and RTD inputs
- 4-digit LED display, with an optional larger-display variant
- Up to two relay outputs for basic alarm or control function
- 1/8 DIN panel mount with NEMA 4X front panel
- In stock and ready to ship
Great Fit For
Great for straightforward process monitoring applications or situations where simplicity, availability, and ease of use are the priority.
PD6000 ProVu Series Analog Input Digital Panel Meter
Enhanced Display with Expanded Features and Options
Overview
The PD6000 is a 1/8 DIN digital panel meter designed for analog process input signals, including 4–20 mA and ±10 V.
It features a dual-line display and supports a wide range of output and configuration options, making it well-suited for applications that require greater flexibility or future expandability.
Key Features
- Analog process inputs including 4–20 mA and voltage
- Dual-line, 6-digit LED display for primary and secondary indication
- Expanded output and option flexibility, including relay and analog output options
- 1/8 DIN panel mount with NEMA 4X front panel
- In stock and ready to ship
Great Fit For
Great for applications where a dual-line display, expanded output options, or future configuration flexibility are required.
Pricing Comparison & Availability
High-level pricing comparison for common analog input configurations. Final pricing varies by options and supplier.
| | | |
| PD765 | PD6000 | |
| Price Range | $418 - $667 Pricing varies by configuration | $467 - $812 Pricing varies by configuration |
| Purchasing Method | Buy online direct from Precision Digital | Buy online direct from Precision Digital |
| Availability |
In Stock / 3 Days
|
In Stock / 3 Days
|
| Buy Online | Buy Online |
Not Sure Which Model to Choose?
Call us at (866) 549 5694 dial 3 for Sales.
