Precision Digital Corporation
PD530

SuperNova 1/4 DIN PID Process & Temperature Controllers

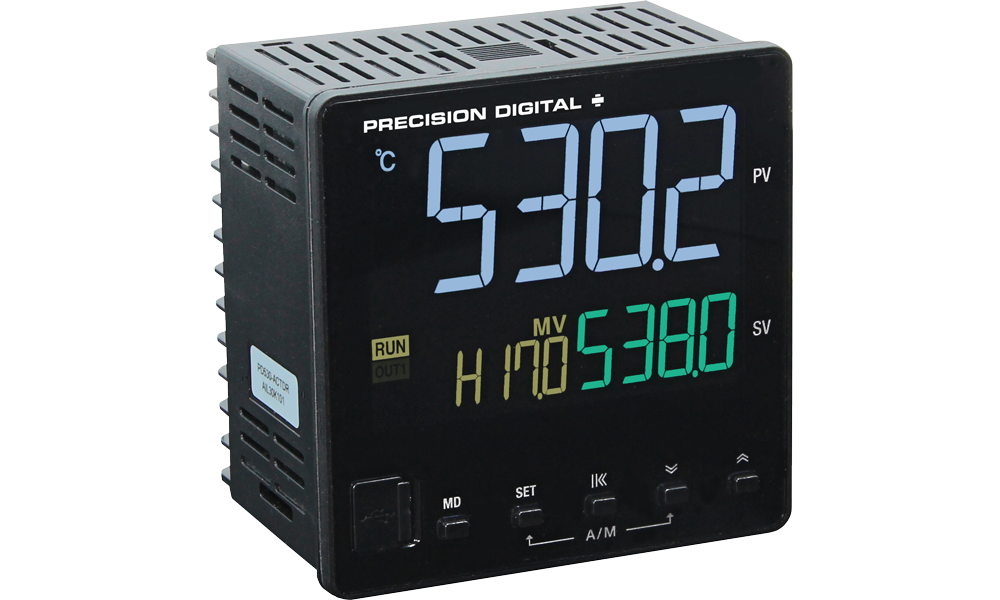

PD530 Left

Model

PD530-A

Product Type

SuperNova 1/4 DIN Auto-Tune PID Controller

Input(s)

4-20 mA, ± 10 V, Thermocouple, RTD (Field Selectable)

Number of Inputs

1

Display

Three Lines, 4 Digits, White, Green, & Amber Reverse Polarity LCD

Power

100-240 VAC

Transmitter Power

None

Output(s)

(1) Control Current (SCR), (1) H&C Cooling Control Relay, (2) Alarm Relays

Operating Temperature Range

-10 to 50°C (14 to 122°F)

Serial Communications

None

Front Panel

IP65

DIN Size

1/4 DIN

Weight

10 oz (290 g)

Approvals

UL & C-UL Recognized Process Control Equipment; Electrical – Component, CE

Warranty

1 Year

$310.00

Model Details

PD530-A

54 In Stock
VIEW ALL MODELS
Connections
Connector Labeling for PD530-R

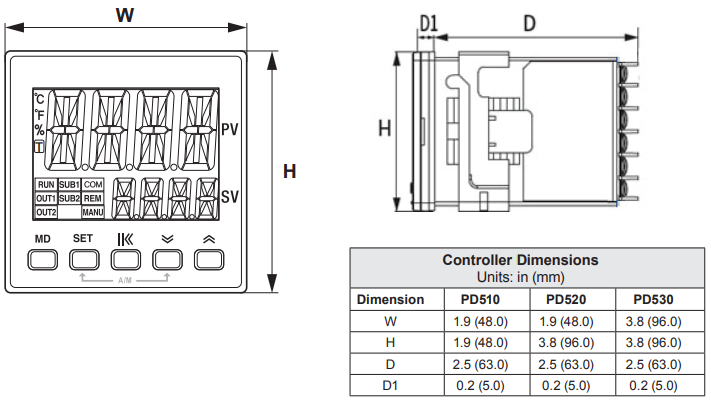

Dimensions

Inches (mm)

SuperNova Dimensions
SuperNova Dimensions
