MeterView XL software connects directly to the meter via a micro USB cable and is available for programming and setup of Loop Leader, Loop Leader+, ProtEX+, and VantageView+ series process meters and flow rate/totalizers. MeterView XL software is used to program parameters for a wide variety of applications such as tank level, pump alternation, rate/totalizing, batch control, and more. This software greatly simplifies the programming process and also allows the user to save configuration files for later use. When connected to the PC, the meter is powered by the USB connection, so no additional power is needed during programming.
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!
Questions? (508) 655-7300

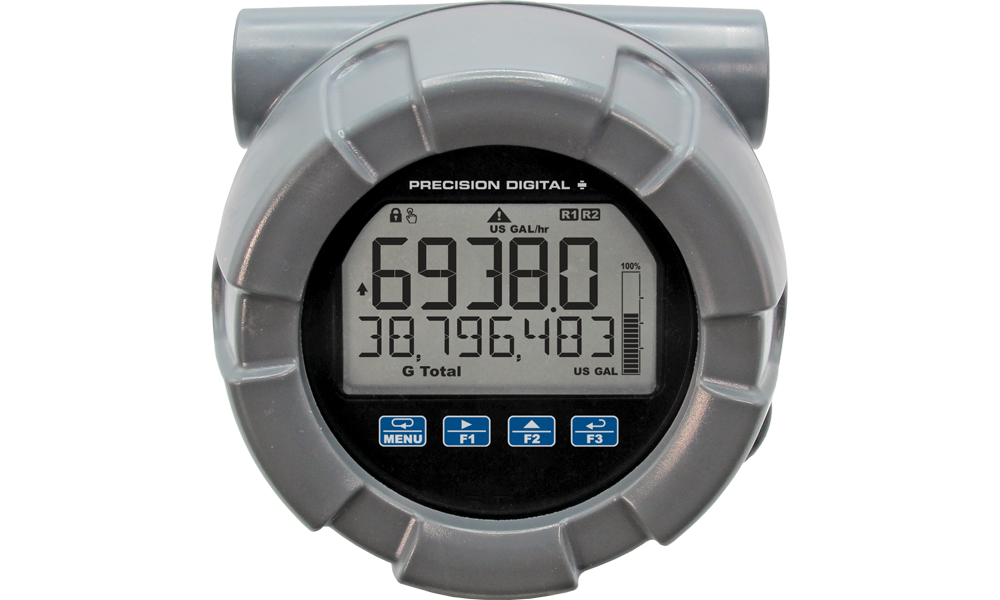

VantageView+ NEMA 4X Pulse Input Flow Rate/Totalizer

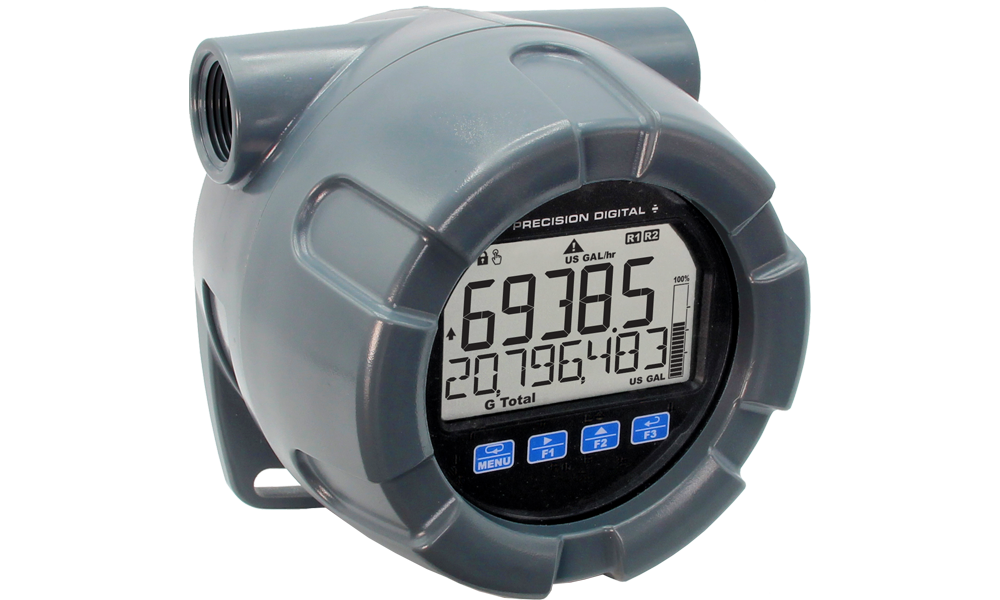

PD6938 Left Plastic
Model
PD6938-GP-PL-A5M
Product Type
VantageView+ NEMA 4X Pulse Input Flow Rate/Totalizer
Input(s)
Pulse
Number of Inputs
1
Display
Dual Line, Backlit LCD
Power
9-30 VDC & A Cell Battery
Output(s)
(2) Open Collectors, (2) SS Relays, (1) 4-20 mA
Operating Temperature Range
-40 to 75°C (-40 to 167°F)
Installation Temperature Range
-40 to 75°C (-40 to 167°F)
Serial Communications
On-Board Modbus RTU RS-485
Math Functions
None
Enclosure Material
Plastic
Enclosure Rating
IP66, NEMA 4X
Conduits (Number) & Size
(3) 3/4" NPT
Weight
1.9 lbs (862 g)
Approvals
CE
Warranty
3 Years
$999.00

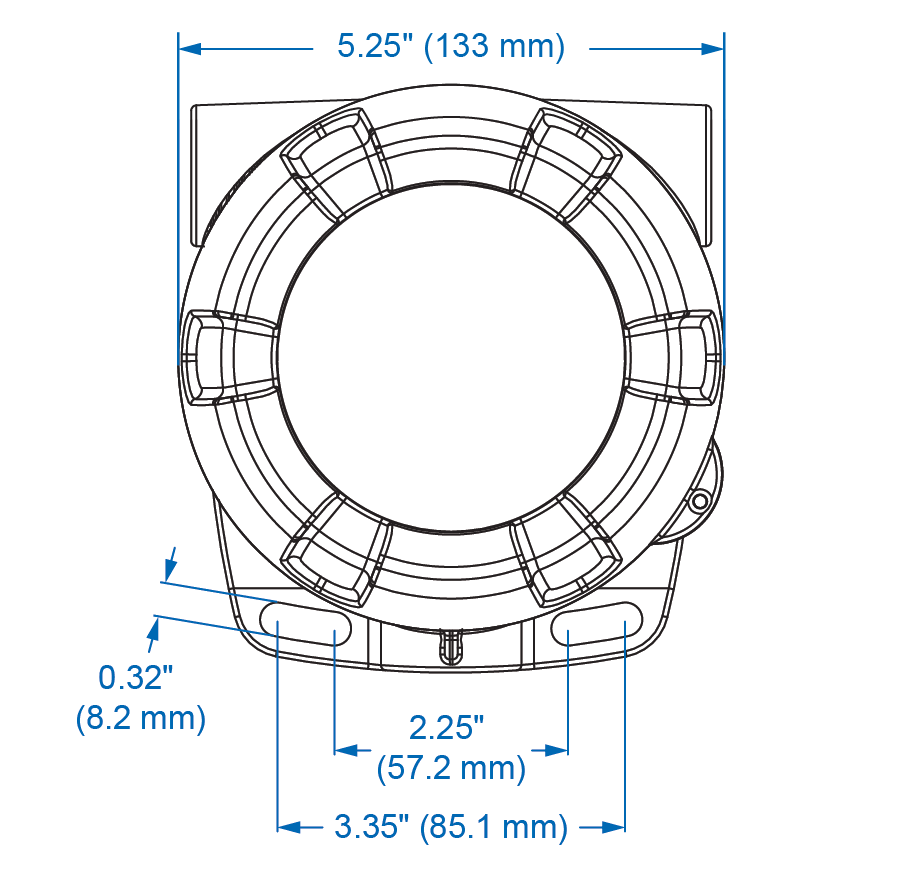

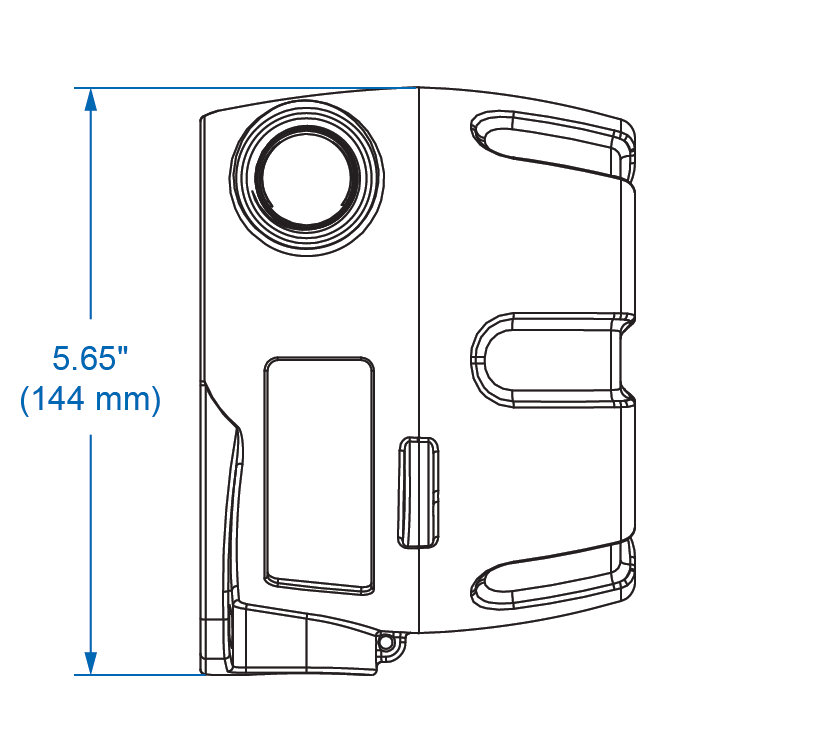

Inches (mm)
