Configure any Vantageview PD6730X Safe Area Modbus Scanner or any ProtEX PD6830X Explosion-Proof Hazardous Area Modbus Scanner using the PC-based ScanView EX software. ScanView EX is available as a free download (adapter required). ScanView EX makes complete scanner configuration quick and easy. Copying one scanner configuration to another, as well as saving or retrieving a scanner's configuration file, is a snap. ScanView EX's intuitive layout and easy-to-understand interface make any scanner configuration simple to complete. A PDA8068 meter-to-USB adapter is available for a quick & easy PC connection. ScanView EX is an extremely useful tool that eliminates a lot of button pushing and minimizes any confusion when setting up a PD6730X or PD6830X.
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!
Questions? (508) 655-7300
Vantageview NEMA 4X Modbus Scanner

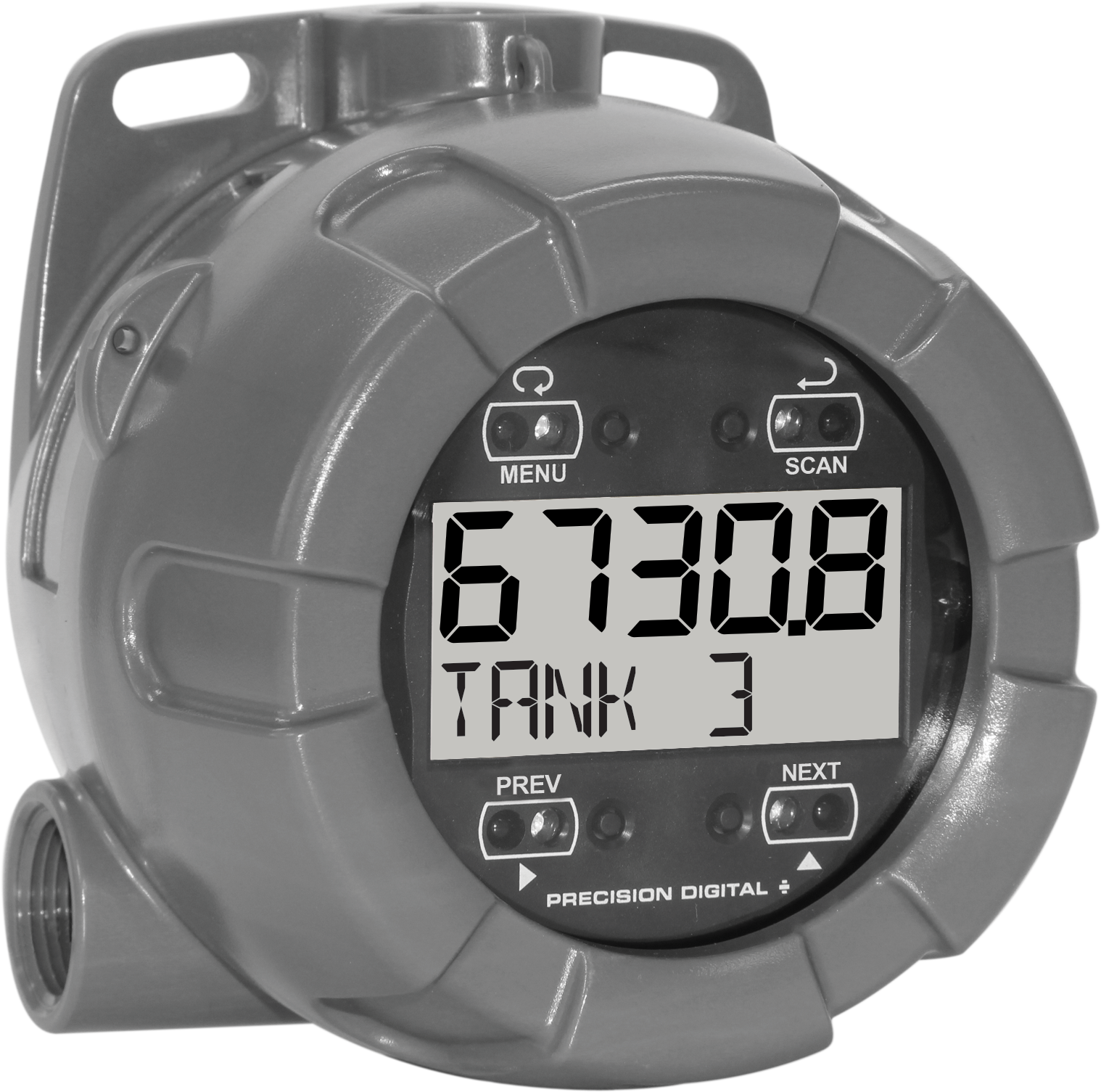

PD6730X Left View
Model
PD6730-AXA-I-L
Product Type
Vantageview NEMA 4X Feet & Inches Modbus RTU RTU Scanner
Input(s)
Modbus RTU
Display
Dual Line, Backlit LCD
Power
9-30 VDC
Output(s)
(2) Open Collectors, (1) 4-20 mA
Operating Temperature Range
-40 to 75°C (-40 to 167°F)
Installation Temperature Range
-40 to 75°C (-40 to 167°F)
Serial Communications
On-Board Modbus RTU RS-485
Math Functions
Yes
Enclosure Material
Plastic
Enclosure Rating
IP66, NEMA 4X
Conduits (Number) & Size
(3) 3/4" NPT (Two Plugs Provided)
Weight
1.7 lbs (748 g)
Approvals
None
Warranty
3 Years
$1027.24
Inches (mm)
