Precision Digital Corporation

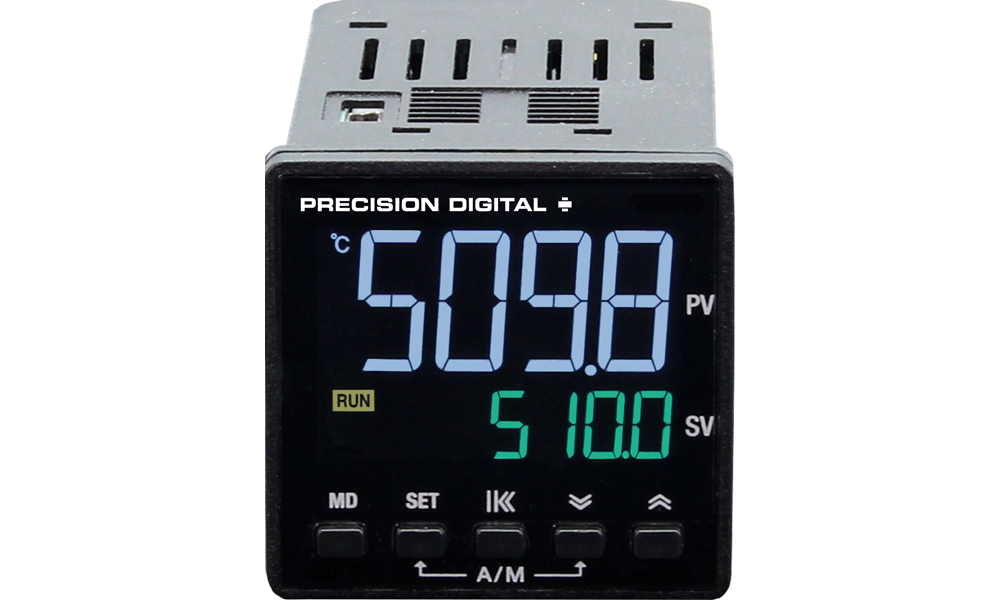

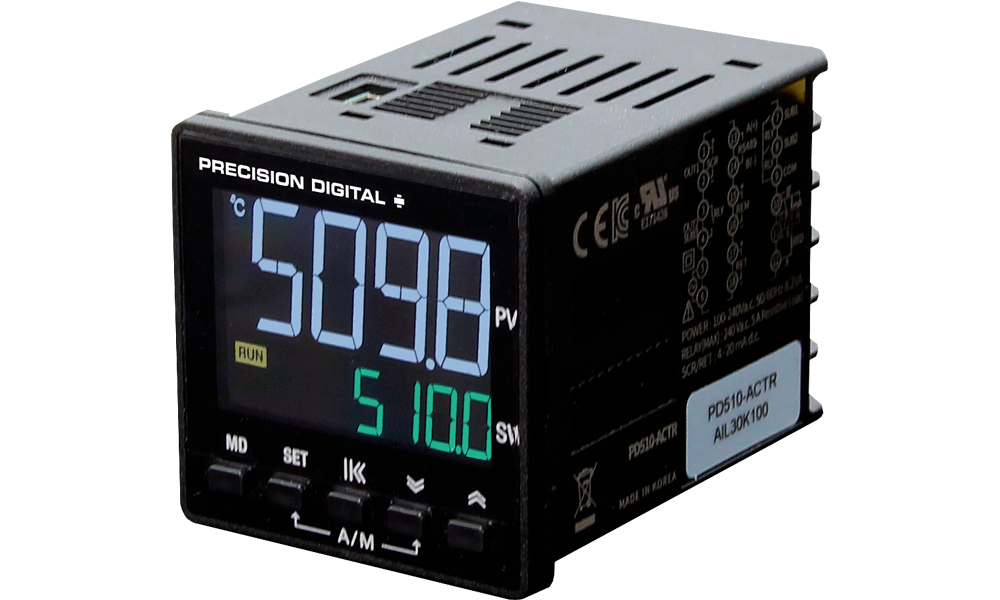

PD510

SuperNova 1/16 DIN PID Process & Temperature Controllers

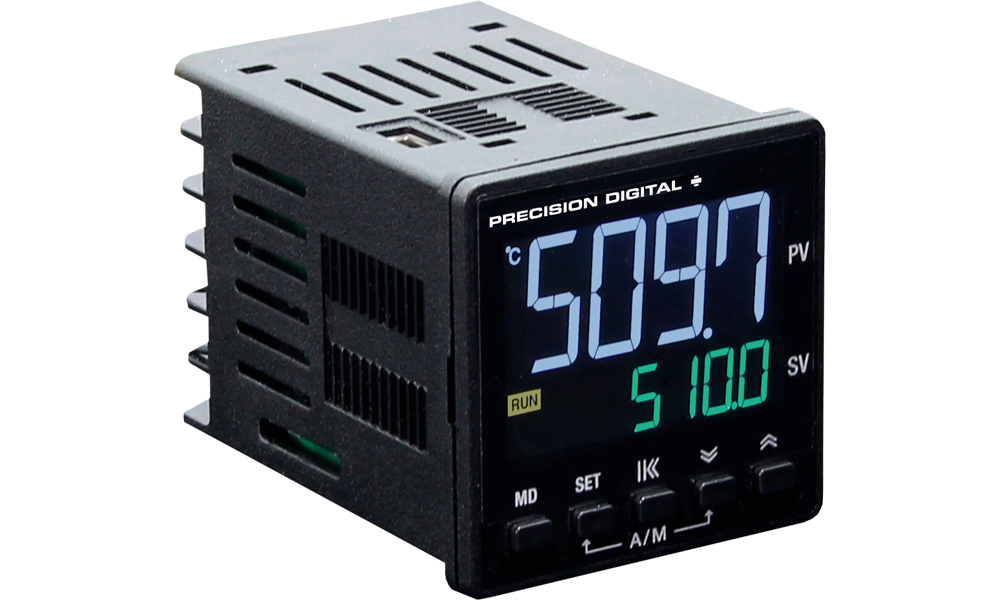

PD510 Left

Model

PD510-S-CTR

Product Type

SuperNova 1/16 DIN Auto-Tune PID Controller

Input(s)

4-20 mA, ± 10 V, Thermocouple, RTD (Field Selectable)

Number of Inputs

1

Display

Dual Line, 4 Digits, White & Green Reverse Polarity LCD

Power

100-240 VAC

Transmitter Power

None

Output(s)

(1) Control Voltage Pulse (SSR), (1) H&C Cooling Control Relay, (2) Alarm Relays, (1) Current Retransmit

Operating Temperature Range

-10 to 50°C (14 to 122°F)

Serial Communications

On-Board Modbus RTU RS-485

Front Panel

IP65

DIN Size

1/16 DIN

Weight

4 oz (120 g)

Approvals

UL & C-UL Recognized Process Control Equipment; Electrical – Component, CE

Warranty

1 Year

$349.00

Model Details

PD510-S-CTR

66 In Stock
VIEW ALL MODELS

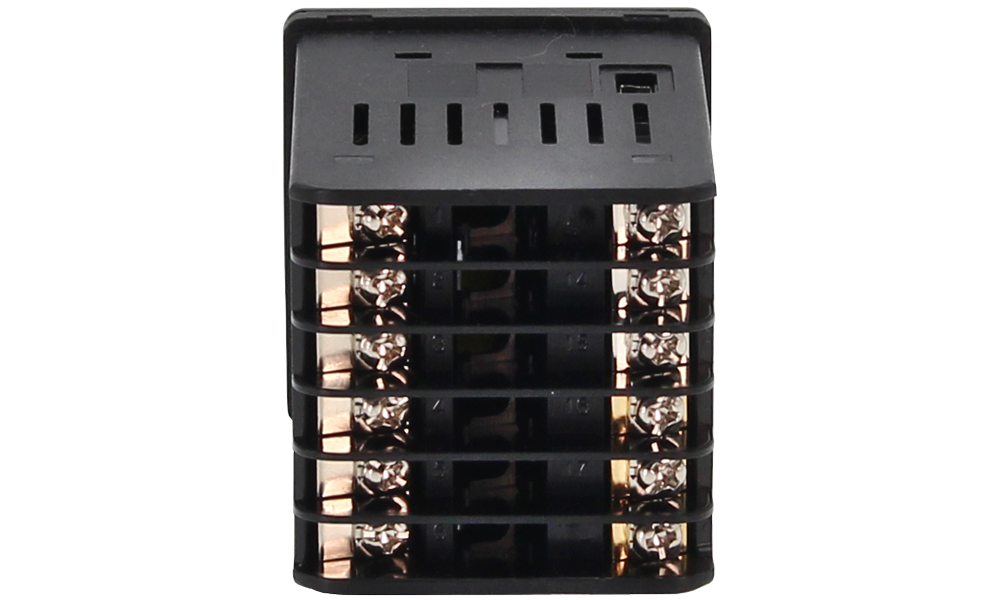

Connections
Connector Labeling for PD510-R
Dimensions

Inches (mm)

SuperNova Dimensions
SuperNova Dimensions
