PD2-6060

Helios Dual Analog Input Process Meter

Model

PD2-6060-7H0

Product Type

Helios Large Display NEMA 4X Dual Input Process Meter

Input(s)

4-20 mA, ± 10 V, (Field Selectable)

Number of Inputs

2

Display

Dual Line, SunBright Red LED, 12 Segments, 6 Digits (-99999 to 999999)

Power

12-24 VDC ±10%, 15 VA max

Transmitter Power

24 VDC @ 100 mA

Output(s)

None

Operating Temperature Range

-40 to 65°C (-40 to 149°F)

Installation Temperature Range

-40 to 65°C (-40 to 149°F)

Serial Communications

On-Board Modbus RTU RS-485

Math Functions

Yes

External Modules Available

4-Relay, Digital I/O, Dual 4-20 mA Outputs

Enclosure Material

Plastic

Enclosure Rating

UL Type 4X, IP65

Conduits (Number) & Size

(4) PG11 Through-Hole Conduit Openings

Weight

6.1 lbs (2.8 kg)

Approvals

UL & C-UL Listed. E160849; UL 508 Industrial Control Equipment, CE

Warranty

3 Years

$1482.00

Model Details

PD2-6060-7H0

0 In Stock
Connections

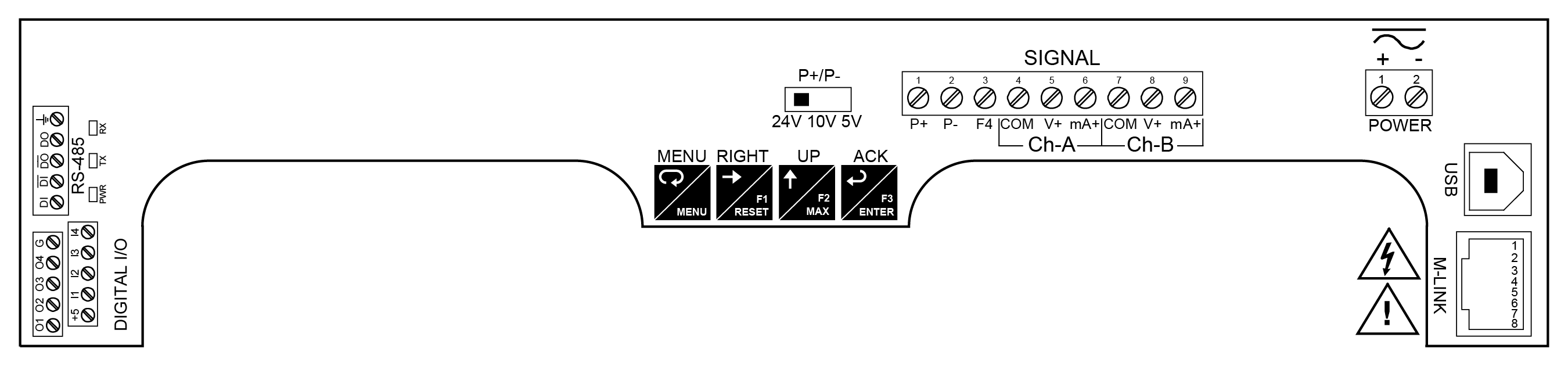

PD2-6060-XH0 Connectors Label

Dimensions

Inches (mm)

Front
Front
Side
Side
Mounting Hole Dimensions
Mounting Hole Dimensions
