Loop Leader+ Large Display Loop-Powered Meter Demo Unit with RLG L/H Demo

Models in stock

from $1648.90

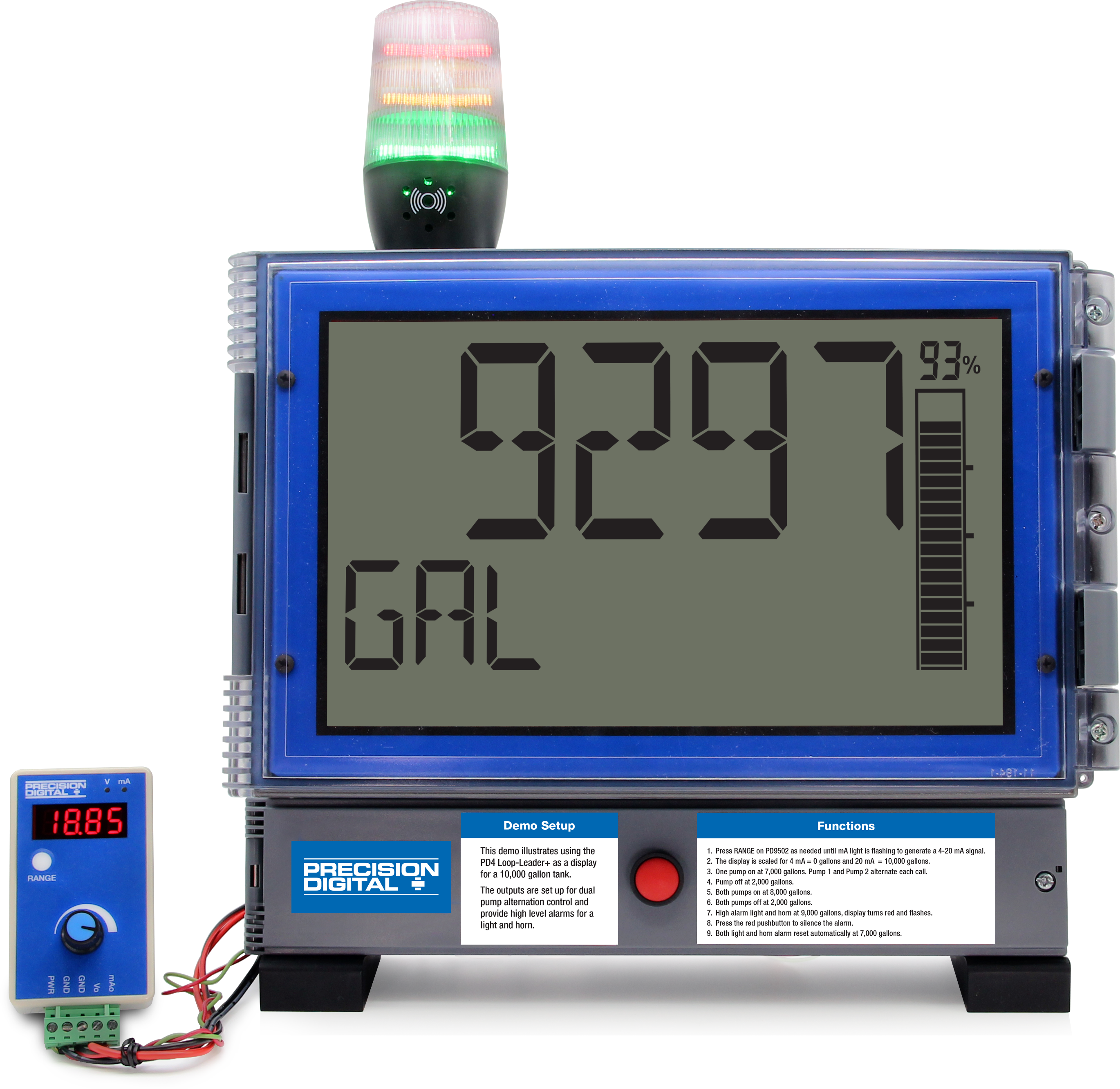

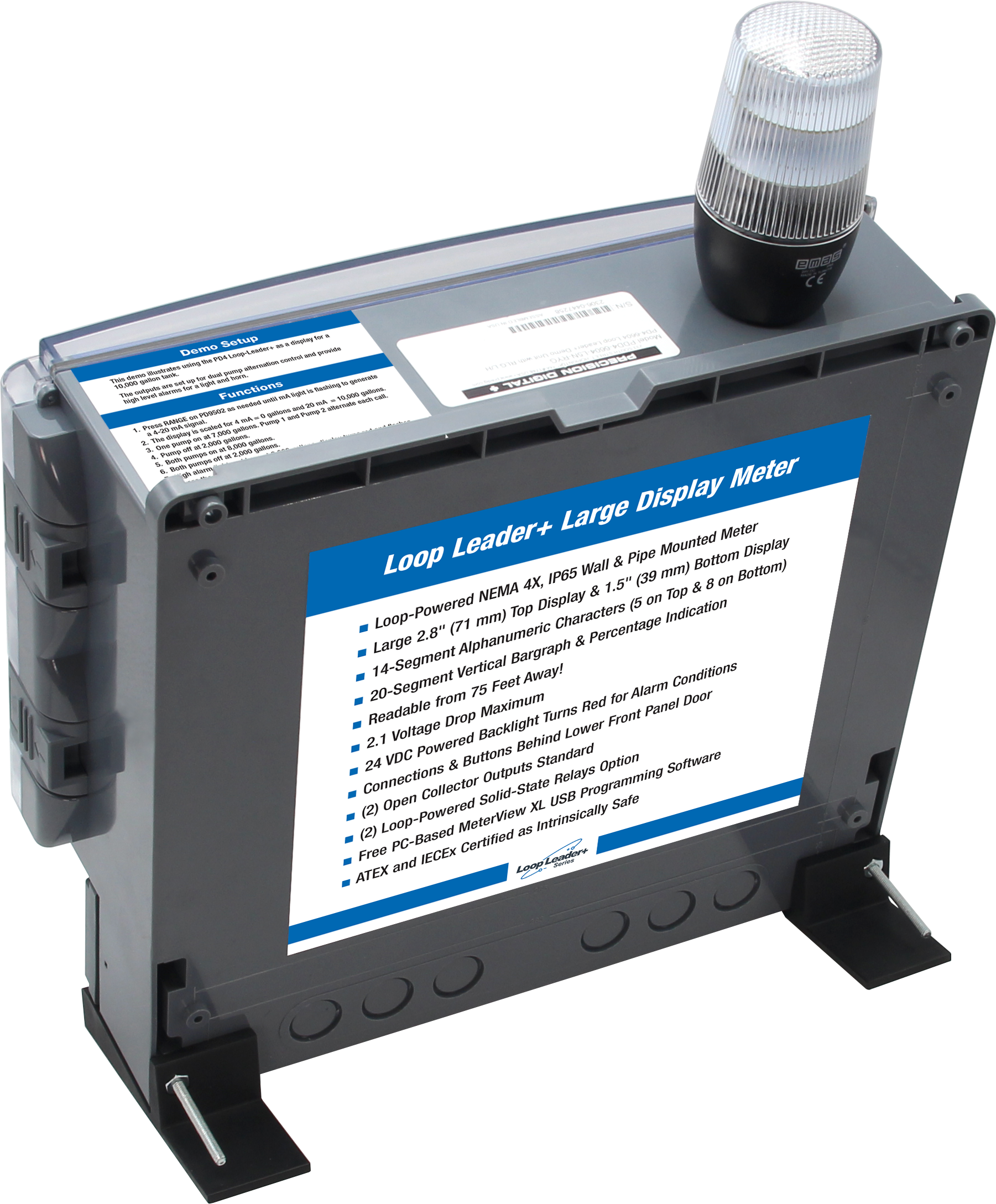

This PDD4-6604-L5N-RYG Loop Leader+ demonstrator comes with a light, a horn, and a reset button wired and programmed for a pump alternation application. The demo also includes a signal generator, so you can vary the input and demonstrate how the light, horn and reset button operate. The demo is scaled as follows: 4-20 mA = 0.0 gallons and and 4-20 mA = 10,000 gallons. The light/horn is programmed to alternate the pumps between 2,000 gallons and 7,000 gallons. The high alarm is programmed to turn the light/horn on at 9,000 gallons. The horn can be reset at any time with the reset switch and the light will automatically go out when the level falls below 9,000 gallons. When demonstrating the Loop Leader+, be sure to stand about 75 feet away and show how big this display really is!
