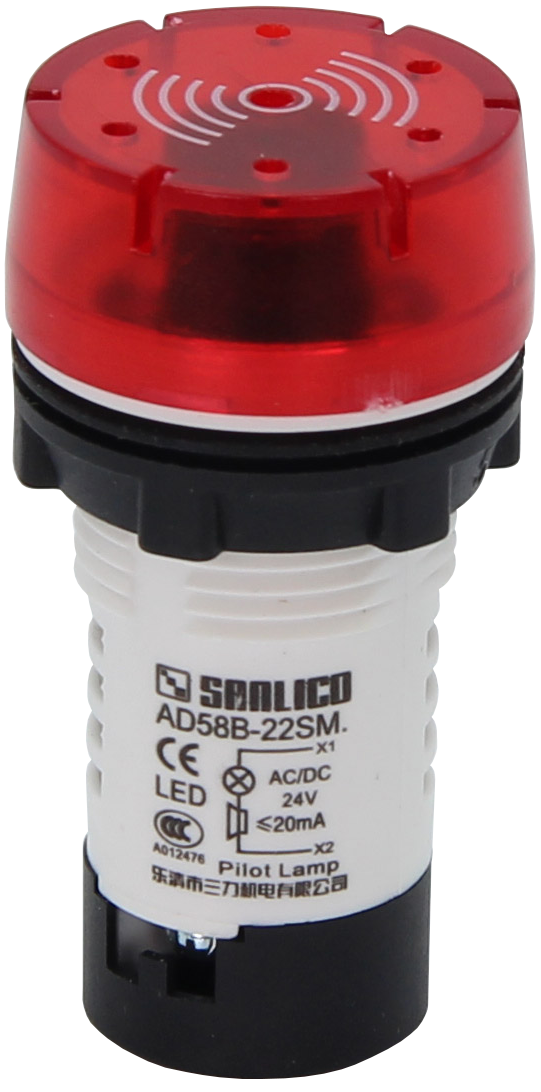

Panel Mount Buzzer and Light

The PDA1000 panel mount buzzer and light provides clear audible and visual indication of alarms in a compact, panel-mounted device. It features a red LED light, an 80 dB buzzer, and operates on 24 VAC/DC at 20 mA max. The 30 mm lens installs through a standard 22 mm mounting hole, requires 42 mm of mounting depth, and is IP30 rated. The PDA1000 is ideal for control panels, enclosure assemblies, and process monitoring applications requiring clear audible and visual alarm monitoring.
