- 4-20 mA Loop Valve Positioner
- Panel Mount or NEMA 4X
- 4-20 mA or 3-21 mA Output Ranges
- Valve Position Displayed as 0-100%
- Built-in Dial for Changing Output
- Backlit Display
- Coarse or Fine Set Point Adjustment
- ± 0.5% Output Accuracy
- 0.01 Display Accuracy
- 15-30 VDC Power Requirement
- < 500 ohms Sampling Resistance
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!
Questions? (508) 655-7300
4-20 mA Valve Positioners
Valve Positioners
Models in stock
from $180.00

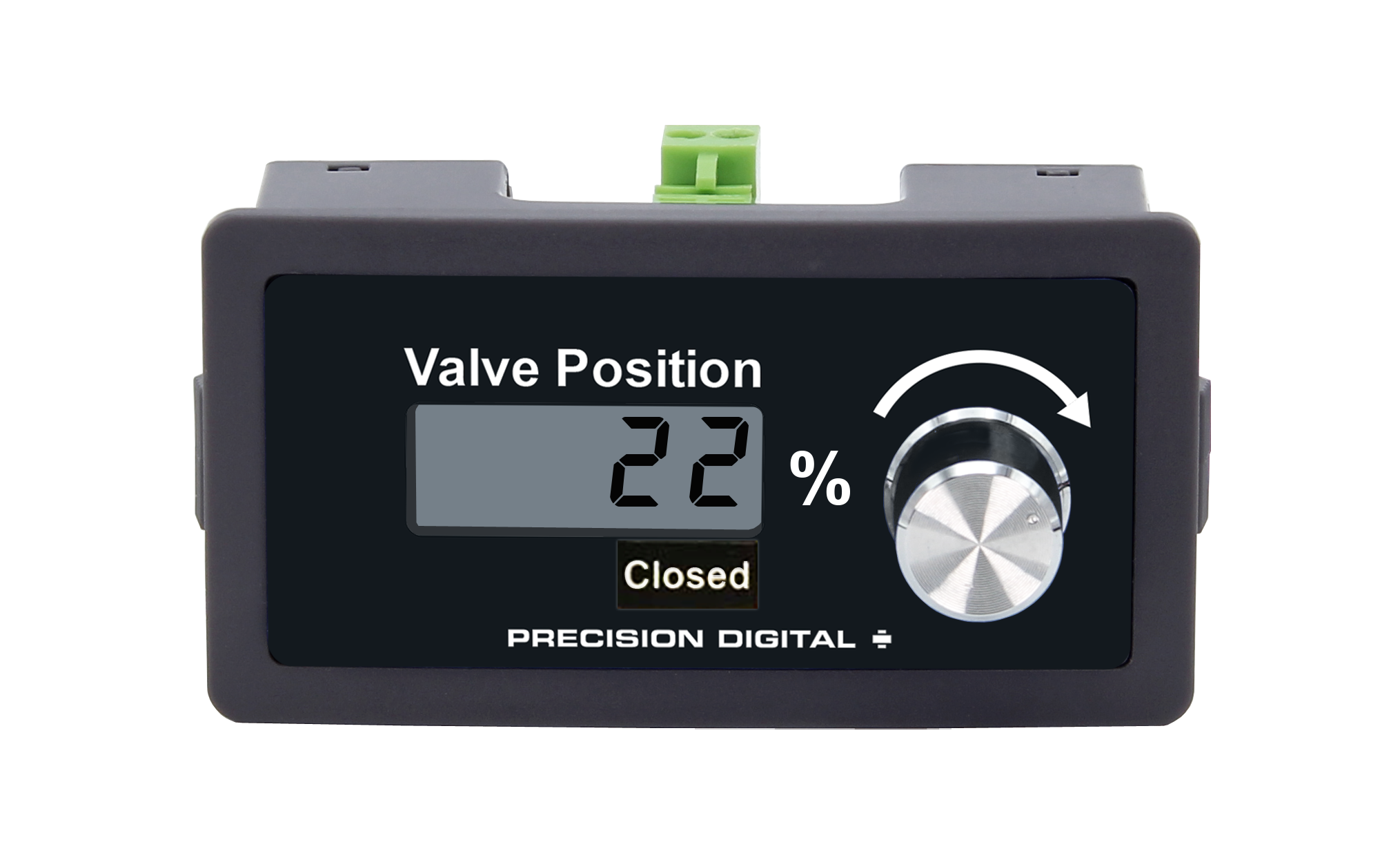

The PD460/61 valve positioners provide a convenient way to generate a 4-20 mA signal that can be used to control another device.
Both feature a backlit LCD. They are programmed to display a value of 0-100% relating to the 4-20 mA output. A built-in dial is provided to vary the displayed / output value. The dial may be programmed for coarse or fine adjustment.

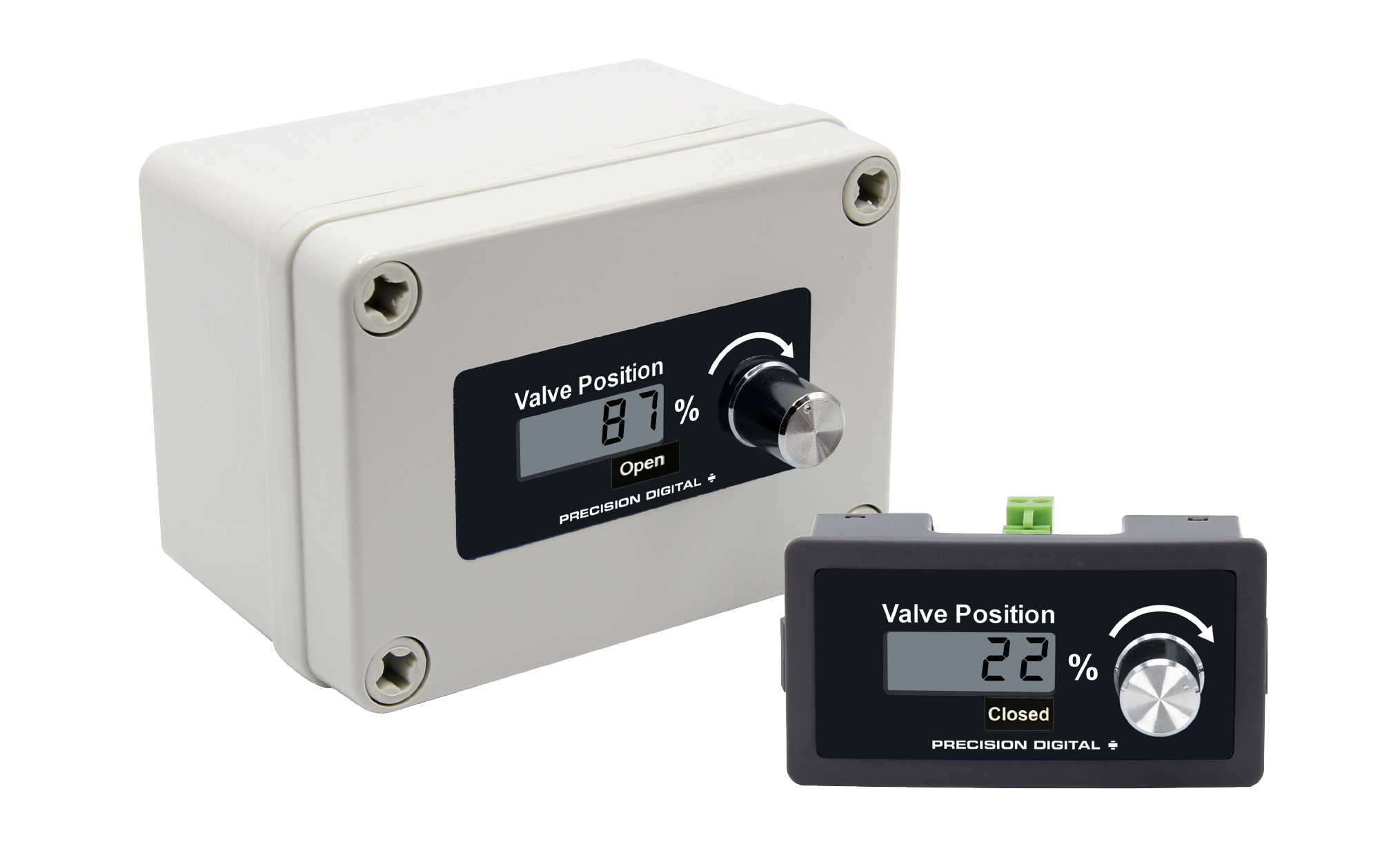

Valve positioners are available as a panel mount or NEMA 4X version. In addition, NEMA 4X enclosures are provided to house up to three of the panel mount versions.
Why Should You Buy:
- Manual valve control (0–100%)
- 4-20 mA positioning
- Coarse or fine adjustment
- Panel or NEMA 4X models
