Low-Cost Loop-Powered Digital Panel Meter

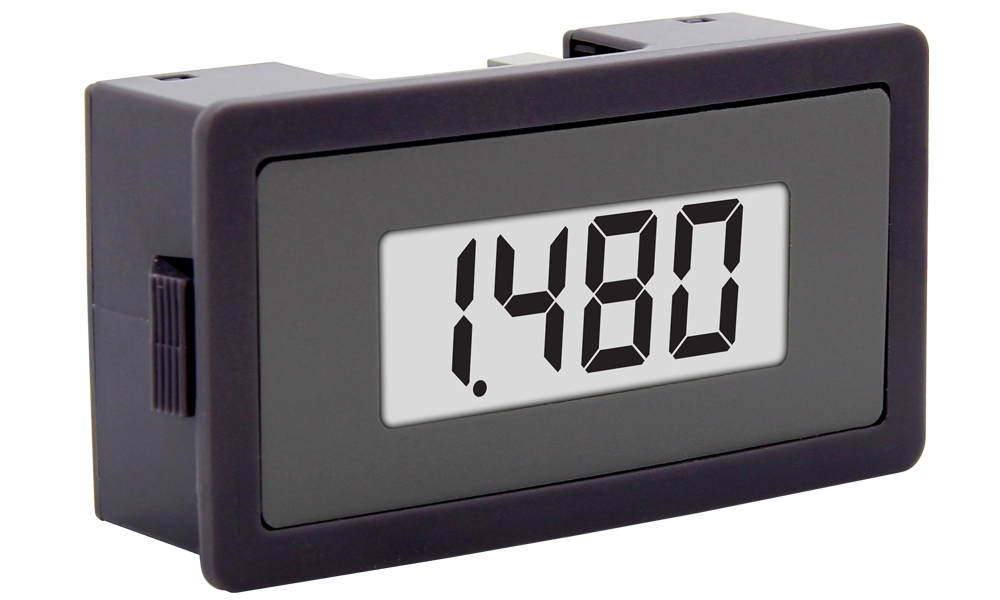

PD480 Left
• Powered Entirely From 4-20 mA Loop
• Loop-Powered Backlight Standard
• 4-20 mA Input
• 1.5 Volt Drop (4.5 Volt Drop with Backlight)
• 0.55" (14 mm) LCD Display
• 3½ Digits; -1999 to 1999
• Panel Cutout: 2.9" x 1.6" (73 mm x 40 mm)
• Snap-in Bezel for Quick Panel Mounting
• 1.0" (25 mm) Behind Panel
• HART® Protocol Transparent
• Operates from 0 to 50°C (32 to 122°F)
• Zero & Span Potentiometer Adjustments for Easy Field Scaling
The PD480 is an affordable, loop-powered digital panel
meter with a large display and compact design. It accepts
a 4-20 mA input that can easily be scaled to engineering
units in the field using the zero and span potentiometers.
The meter comes equipped with a 3½ digit LCD and a looppowered
backlight.
Being loop-powered eliminates the need for additional
power lines, reducing costs. The meter draws all the
required power from the 4-20 mA loop, with a minimal 1.5 V
voltage drop, ensuring a low impact on the loop.
This meter operates in a broad temperature range from
0 to 50°C (32 to 122°F). Calibration is simple and quick,
involving just a two-step process with the adjustment of high
and low non-interacting potentiometers.

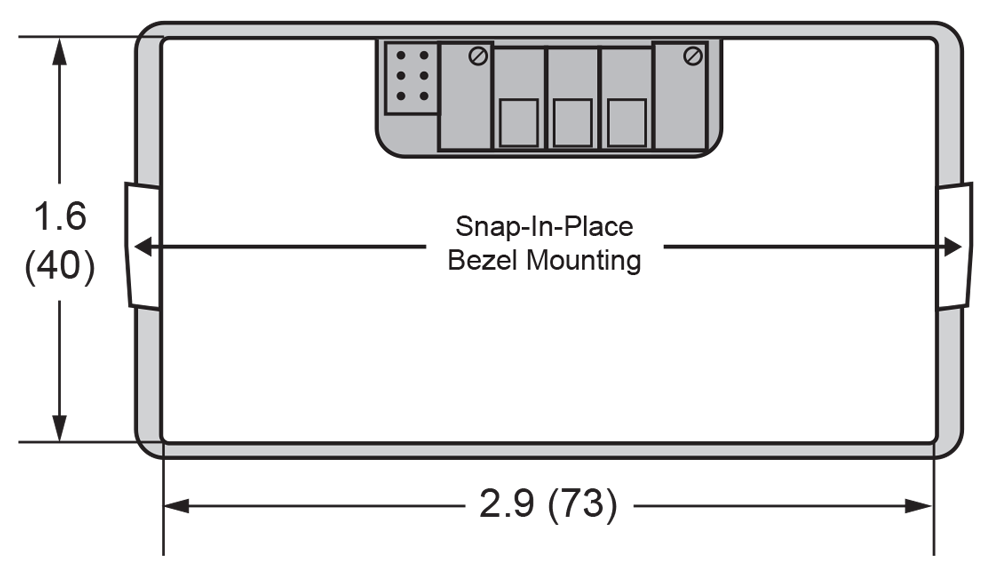

Inches (mm)
